Same model may have multiple batches, images only for reference.

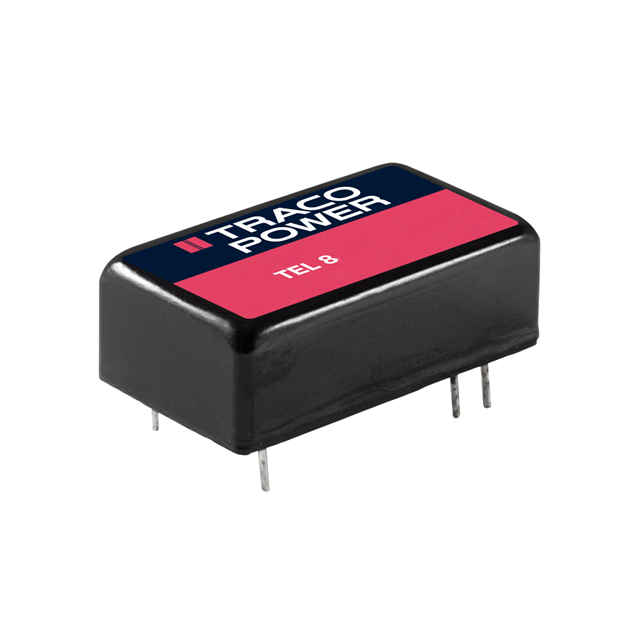

TEL 8-1223 Real Image
Same model may have multiple batches, images only for reference.

TEL 8-1223

Part No TEL 8-1223
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 8W / Isolated Module DC DC Converter 2 Output 15V -15V 265mA, 265mA 9V - 18V Input
Datasheet
TEL 8-1223 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 265mA, 265mA
Power (Watts) 8 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 80°C
Efficiency 84%
Mounting Through Hole
Case / Package 16-DIP Module, 6 Leads
Size / Dimension 0.95" L x 0.55" W x 0.33" H (24.1mm x 14.0mm x 8.5mm)
Base Product Number TEL 8
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEL 8-1223-ND,TEL8-1223
Standard Package 10
Win Source Part Number 1335601-TEL 8-1223
Ultra Librarian 3D Model Ultra Librarian TEL 8-1223 CAD Model

Description

The Traco Power Isolated Module DC DC Converter is an ideal power supply solution for ITE (Commercial) applications.

  • Features: SCP
  • Power Output: 8 watts
  • Voltage Isolation: 1.5 kV
  • Outputs: Two
  • Maximum Output Current: 265mA each
  • Input Voltage Range: Between 9V and 18V
  • Output Voltage: 15V (Output 1) and -15V (Output 2)
  • Efficiency: 84%
  • Size: 0.95" L x 0.55" W x 0.33" H (24.1mm x 14.0mm x 8.5mm)
  • Package: 16-DIP Module, 6 Leads
  • Compliance: RoHS3 compliant
  • ECCN: EAR99
