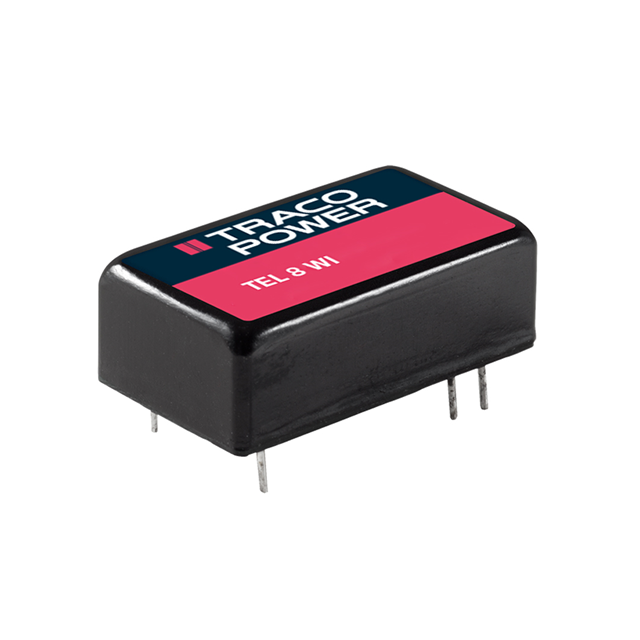

TEL 8-4822WI Real Image
Same model may have multiple batches, images only for reference.

TEL 8-4822WI

Part No TEL 8-4822WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 8W / Isolated Module DC DC Converter 2 Output 12V -12V 335mA, 335mA 18V - 75V Input
Datasheet
TEL 8-4822WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 335mA, 335mA
Power (Watts) 8 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 80°C (With Derating)
Efficiency 86%
Mounting Through Hole
Case / Package 16-DIP Module, 6 Leads
Size / Dimension 0.95" L x 0.55" W x 0.33" H (24.1mm x 14.0mm x 8.5mm)
Base Product Number TEL 8
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEL 8-4822WI-ND,2266-TEL 8-4822WI,TEL8-4822WI
Standard Package 10
Win Source Part Number 1335624-TEL 8-4822WI
Ultra Librarian 3D Model Ultra Librarian TEL 8-4822WI CAD Model

Description

This electronic component is manufactured by Traco Power and has a Win Source Part Number of 1335624-TEL 8-4822WI.

  • Category: Power Supplies - Board Mount>DC DC Converters
  • Packaging: tube
  • Type: isolated module with SCP type
  • Size: 0.95" L x 0.55" W x 0.33" H (24.1mm x 14.0mm x 8.5mm)
  • Suitable for: ITE (Commercial) applications
  • Standard Package: 10
  • Mounting: through-hole
  • Power: 8 W (watts)
  • Voltage Isolation: 1.5 kV
  • Outputs: 2
  • Maximum Current Output: 335mA each
  • Input Voltage: 18V to 75V
  • Output Voltage 1: 12V
  • Output Voltage 2: -12V
  • Efficiency: 86%
  • Temperature Range: -40°C ~ 80°C (With Derating)
  • Case / package: 16-DIP Module, 6 Leads
  • ECCN: EAR99 compliant
  • RoHS3: compliant
  • REACH: unaffected
