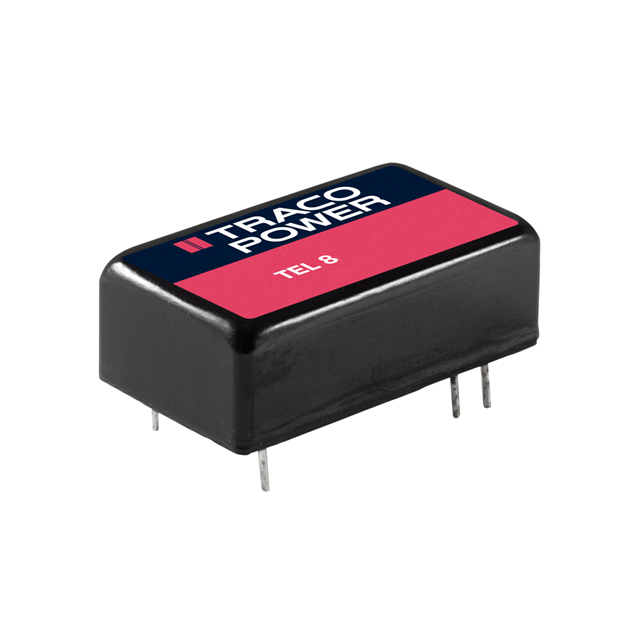

Same model may have multiple batches, images only for reference.

TEL 8-4823

Name: TEL 8-4823
Brand: Traco Power
SKU: 1335658
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TEL 8-4823
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 8W / Isolated Module DC DC Converter 2 Output 15V -15V 265mA, 265mA 36V - 75V Input
Datasheet	TEL 8-4823 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	265mA, 265mA
Power (Watts)	8 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 80°C
Efficiency	86%
Mounting	Through Hole
Case / Package	16-DIP Module, 6 Leads
Size / Dimension	0.95" L x 0.55" W x 0.33" H (24.1mm x 14.0mm x 8.5mm)
Base Product Number	TEL 8
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TEL8-4823,TEL 8-4823-ND
Standard Package	10
Win Source Part Number	1335658-TEL 8-4823
Ultra Librarian 3D Model	Ultra Librarian TEL 8-4823 CAD Model

Alternative Products

Description

The Traco Power 1335658-TEL 8-4823 is an isolated module type DC DC converter used for power supplies in ITE (Commercial) applications.

Packaging: Tube
Standard Package: 10
Mounting: Through-Hole
Power Rating: 8W
Voltage Isolation: 1.5 kV
Outputs: Two
Maximum Current Output: 265mA, 265mA
Input Voltage: 36V to 75V
Output Voltage 1: 15V
Output Voltage 2: -15V
Efficiency: 86%
Temperature Range: -40°C ~ 80°C
Case/Package: 16-DIP Module, 6 Leads
Alternative Part Numbers: TEL8-4823, TEL 8-4823-ND
ROHS3 Compliant: Yes
ECCN: EAR99
HTSUS: 8504.40.9580
