Same model may have multiple batches, images only for reference.

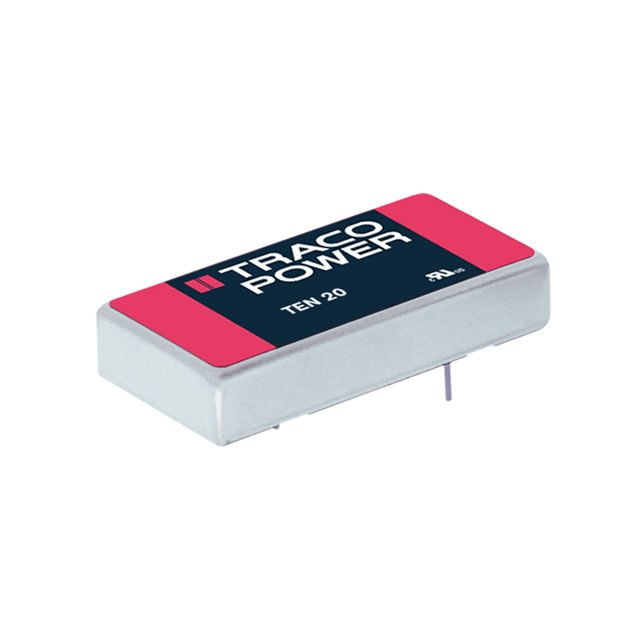

TEN 20-2412 Real Image
Same model may have multiple batches, images only for reference.

TEN 20-2412

Part No TEN 20-2412
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 20W  /  Isolated Module DC DC Converter 1 Output 12V 1.67A 18V - 36V Input
Datasheet
TEN 20-2412 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TEN 20 (20W)
Package Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Current - Output (Max) 1.67A
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 89%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number TEN 20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-2124
Standard Package 10
Win Source Part Number 1032531-TEN 20-2412
Ultra Librarian 3D Model Ultra Librarian TEN 20-2412 CAD Model

Description

This electronic component is a power supply board mount DC DC converter from the TEN 20 series, manufactured by Traco Power.

  • Series: TEN 20
  • Manufacturer: Traco Power
  • Type: Isolated Module
  • Feature: SCP
  • Package: Tube
  • Application: ITE (commercial)
  • Standard Package: 10
  • Power: 20W
  • Voltage Isolation: 1.5 kV
  • Output: Single
  • Maximum Output Current: 1.67A
  • Input Voltage: 18V to 36V
  • Output Voltage: 12V
  • Efficiency: 89%
  • Mounting Type: Through-Hole
  • Package/Case: 6-DIP Module
  • Operating Temperature: -40°C to 85°C (with derating)
  • Dimensions: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
  • Alternative Parts Cross-Reference: Yes
  • ECCN: EAR99
  • Fake Product Threat: 75%
  • MSL Level: Not Applicable
  • REACH: Unaffected
  • HTSUS Code: 8504.40.9580
  • Other Names: 1951-2124
  • Product Status: Not for new designs
