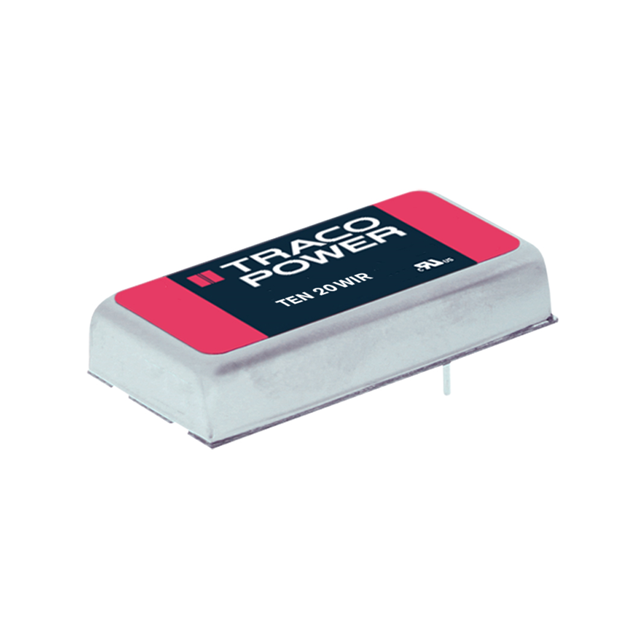

Same model may have multiple batches, images only for reference.

TEN 20-7222WIR

Name: TEN 20-7222WIR
Brand: Traco Power
SKU: 1335653
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEN 20-7222WIR
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 20W / Isolated Module DC DC Converter 2 Output 12V -12V 833mA, 833mA 43V - 160V Input
Datasheet	TEN 20-7222WIR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	43V
Voltage - Input (Max)	160V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	833mA, 833mA
Power (Watts)	20 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial), Railway
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	88%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number	TEN 20
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TEN20-7222WIR,TEN20-7222WIR-ND,TEN 20-7222WIR-ND,1951-2980
Standard Package	10
Win Source Part Number	1335653-TEN 20-7222WIR
Ultra Librarian 3D Model	Ultra Librarian TEN 20-7222WIR CAD Model

Alternative Products

Description

The Traco Power TEN 20-7222WIR is an isolated module DC-DC converter that is designed to offer high performance and reliability for various applications.

Features: Remote On/Off, OCP, OVP, and SCP
Power Output: 20 W
Voltage Isolation: 2.25 kV
Number of Outputs: 2
Maximum Output Current: 833mA for each output
Input Voltage Range: 43V to 160V
Output Voltage 1: 12V
Output Voltage 2: -12V
Efficiency: 88%
Applications: ITE (Commercial) and Railway
Mounting: Through-Hole
ROHS3 Compliant: Yes
