BNCCP-FJ-75 TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

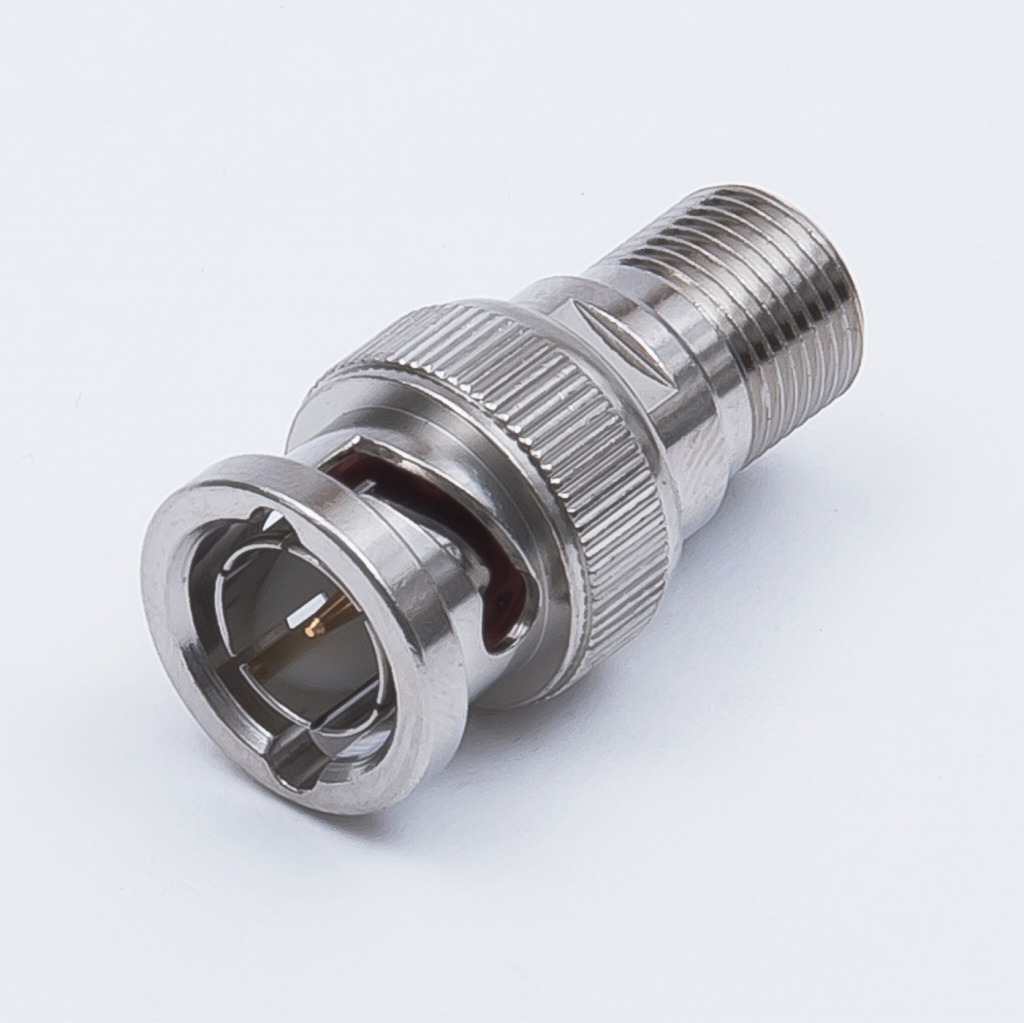

BNCCP-FJ-75

Part No BNCCP-FJ-75
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Adapters
Description an In/Between Series Adaptors . This connector is suitable for various high-frequency applications. It features a impedance 75Ω, and has a rated voltage of AC 500V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (5 mΩ(Max.), and an excellent V.S.W.R 1.3(Max.) at DC~3GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Beryllium Copper/Gold Plating, while the body is Brass/Nickel Plating.
Datasheet
BNCCP-FJ-75 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Adapter Type Plug to Jack
Conversion Type Between Series
Adapter Series BNC to F
Center Gender Female to Male
Convert From (Adapter End) BNC Plug, Male Pin
Convert To (Adapter End) F Jack, Female Socket
Impedance 75 Ohms
Style Straight
Mounting Type Free Hanging (In-Line), Right Angle
Fastening Type Bayonet Lock, Threaded
Center Contact Plating Gold
Ultra Librarian 3D Model Ultra Librarian BNCCP-FJ-75 CAD Model
