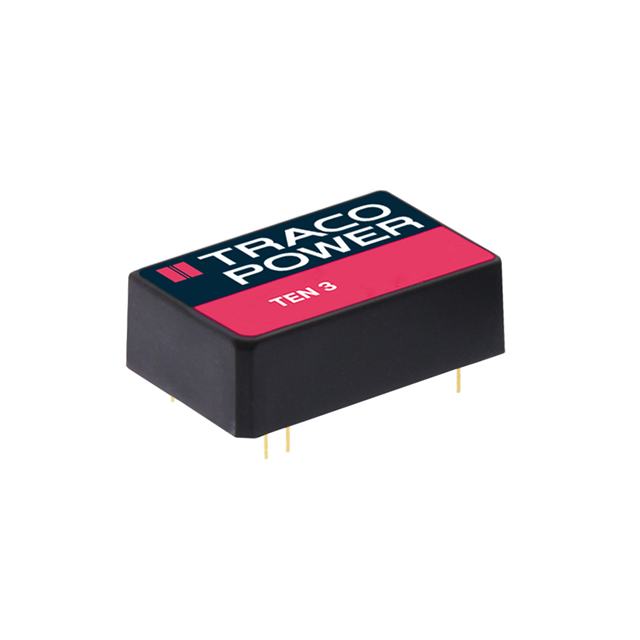

Same model may have multiple batches, images only for reference.

TEN 3-4823

Name: TEN 3-4823
Brand: Traco Power
SKU: 1335764
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	TEN 3-4823
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 36V - 72V Input
Datasheet	TEN 3-4823 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	72V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	100mA, 100mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	84%
Mounting	Through Hole
Case / Package	24-DIP Module, 8 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Approval Agency	CB, cCSAus
Base Product Number	TEN 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TEN3-4823-ND,TEN3-4823,TEN 3-4823-ND,1951-3003
Standard Package	10
Win Source Part Number	1335764-TEN 3-4823
Ultra Librarian 3D Model	Ultra Librarian TEN 3-4823 CAD Model

Alternative Products

Description

The Traco Power 1335764-TEN 3-4823 is an isolated module DC-DC converter that is designed to provide reliable power supply for commercial applications.

Module Type: Isolated
Application: Commercial applications
Number of Outputs: Two
Current Output: 100mA each
Power Rating: 3W
Voltage Isolation: 1.5 kV
Efficiency: 84%
Dimensions: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Package: 24-DIP module, 8 leads
Features: SCP features
Approvals: CB and cCSAus
Temperature Range: -40°C ~ 85°C (With Derating)
