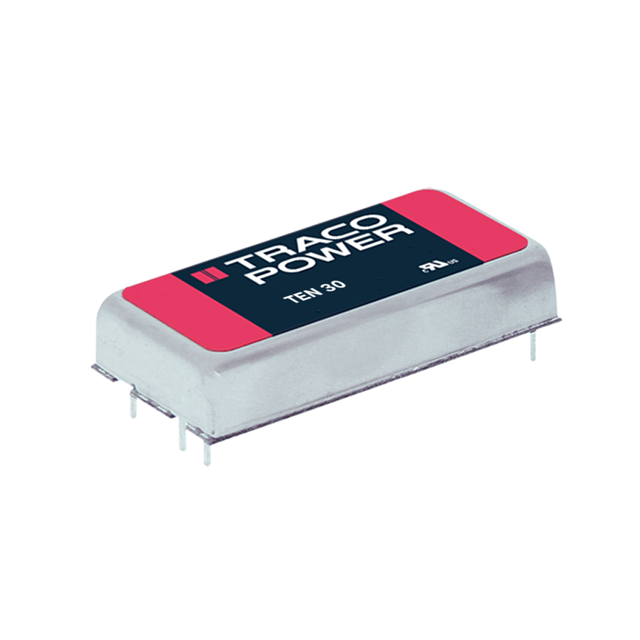

Same model may have multiple batches, images only for reference.

TEN 30-2422

Name: TEN 30-2422
Brand: Traco Power
SKU: 1335676
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEN 30-2422
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 30W / Isolated Module DC DC Converter 2 Output 12V -12V 1.25A, 1.25A 18V - 36V Input
Datasheet	TEN 30-2422 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	1.25A, 1.25A
Power (Watts)	30 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	89%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package	Module
Base Product Number	TEN 30
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TEN 30-2422-ND,TEN30-2422
Standard Package	10
Win Source Part Number	1335676-TEN 30-2422
Ultra Librarian 3D Model	Ultra Librarian TEN 30-2422 CAD Model

Alternative Products

Description

The Traco Power TEN 30-2422 is an isolated module type DC DC converter with a power (Watts) of 30 W.

Voltage-Isolation: 1.5 kV
Size/Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Feature: remote on/off, OCP, OTP, OVP, SCP, UVLO features
Packaging: tube
Current-Output (Max): 1.25A, 1.25A
Voltage-Input (Min): 18V
Voltage-Input (Max): 36V
Temperature Range: -40°C ~ 85°C (With Derating)
Case/Package: 6-DIP module
ECCN: EAR99
REACH: unaffected
ROHS3: compliant
HTSUS code: 8504.40
