Same model may have multiple batches, images only for reference.

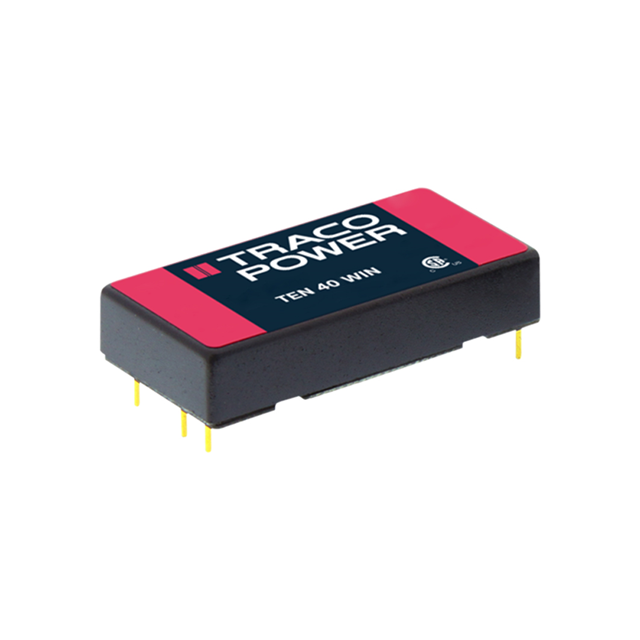

TEN 40-4823WIN Real Image
Same model may have multiple batches, images only for reference.

TEN 40-4823WIN

Part No TEN 40-4823WIN
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 40W / Isolated Module DC DC Converter 2 Output 15V -15V 1.33A, 1.33A 18V - 75V Input
Datasheet
TEN 40-4823WIN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 1.33A, 1.33A
Power (Watts) 40 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OVP, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 88%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number TEN 40
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEN 40-4823WIN-ND,TEN40-4823WIN
Standard Package 10
Win Source Part Number 1335772-TEN 40-4823WIN
Ultra Librarian 3D Model Ultra Librarian TEN 40-4823WIN CAD Model

Description

The Traco Power DC-DC converter is a high-quality isolated module type converter that is designed to provide a reliable and efficient power supply solution for ITE (Commercial) applications.

  • Features: Remote on/off function, overvoltage protection, short-circuit protection
  • Isolation Voltage: 1.5 kV
  • Power Rating: 40 W
  • Number of Outputs: Two
  • Maximum Output Current: 1.33A each
  • Input Voltage Range: 18V to 75V
  • Output Voltage: 15V and -15V
  • Efficiency: 88%
  • Operating Temperature: -40°C to 75°C
  • Mounting Type: Through-hole
  • Package: 6-DIP module
