Same model may have multiple batches, images only for reference.

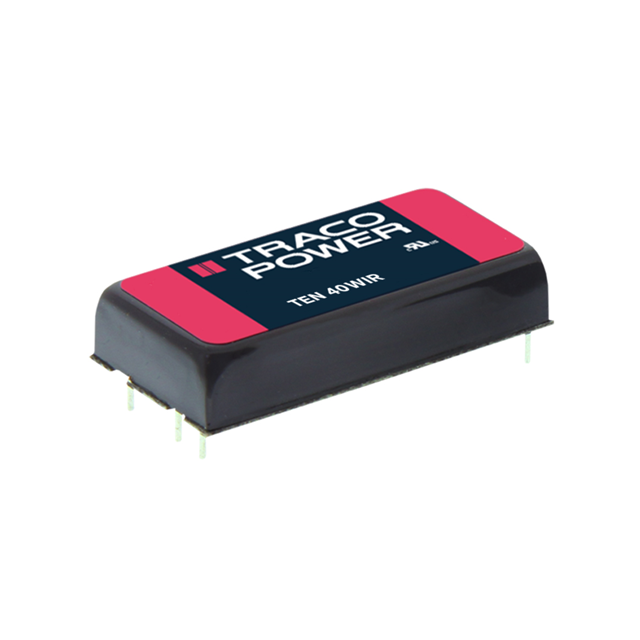

TEN 40-7211WIR Real Image
Same model may have multiple batches, images only for reference.

TEN 40-7211WIR

Part No TEN 40-7211WIR
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 40W / Isolated Module DC DC Converter 1 Output 5V 8A 43V - 160V Input
Datasheet
TEN 40-7211WIR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 43V
Voltage - Input (Max) 160V
Voltage - Output 1 5V
Current - Output (Max) 8A
Power (Watts) 40 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 89%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package Module
Base Product Number TEN 40
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2185
Standard Package 10
Win Source Part Number 1335785-TEN 40-7211WIR
Ultra Librarian 3D Model Ultra Librarian TEN 40-7211WIR CAD Model

Description

The Traco Power TEN 40-7211WIR is a DC-DC converter that is designed for use in ITE (Commercial) and Railway applications.

  • Type: Isolated module
  • Voltage Isolation: 1.6 kV
  • Maximum Power Output: 40 watts
  • Maximum Output Current: 8A
  • Feature: Remote on/off
  • Protection: Overcurrent, overvoltage, short circuit, and undervoltage
  • Efficiency: 89%
  • Operating Temperature: -40 to 85 degrees Celsius
  • Compliance: RoHS3 compliant and unaffected by REACH
  • Package: 6-DIP module
  • Dimensions: 2.00 inches in length, 1.00 inch in width, and 0.40 inches in height
