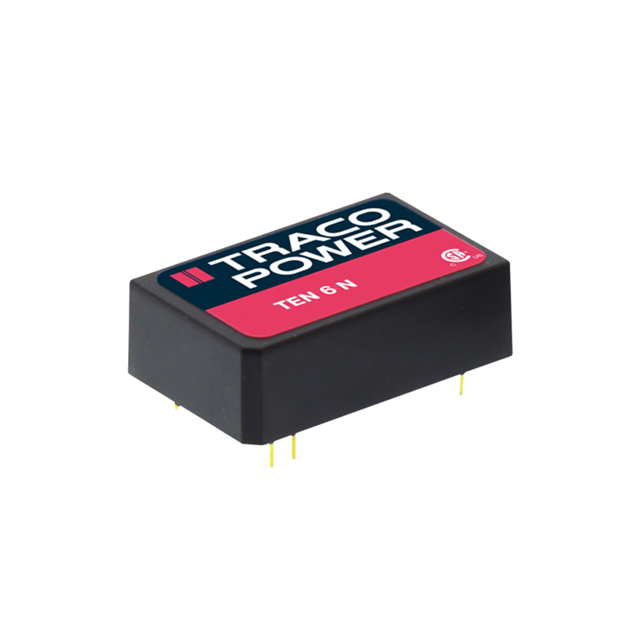

This electronic component is manufactured by Traco Power.

• Win Source Part Number: 1335832-TEN 6-4811N
• Product Type: Isolated module with OCP and SCP features
• Size / Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
• Application: ITE (Commercial)
• Package: 24-DIP module, 7 leads case / package
• Base Product Number: TEN 6
• Standard Package: 10
• Mounting Technology: Through hole
• Power: 6 W
• Voltage Isolation: 1.5 kV
• Outputs: 1
• Maximum Output Current: 1.2A
• Voltage Input Range: 36V to 75V
• Voltage Output: 5V
• Efficiency: 80 percent
• Maximum Temperature Range: -40°C to 85°C (with derating)
• Compliance: RoHS3
• REACH: Not affected
• MSL Level: Not applicable
• HTSUS: 8504.40.9580
