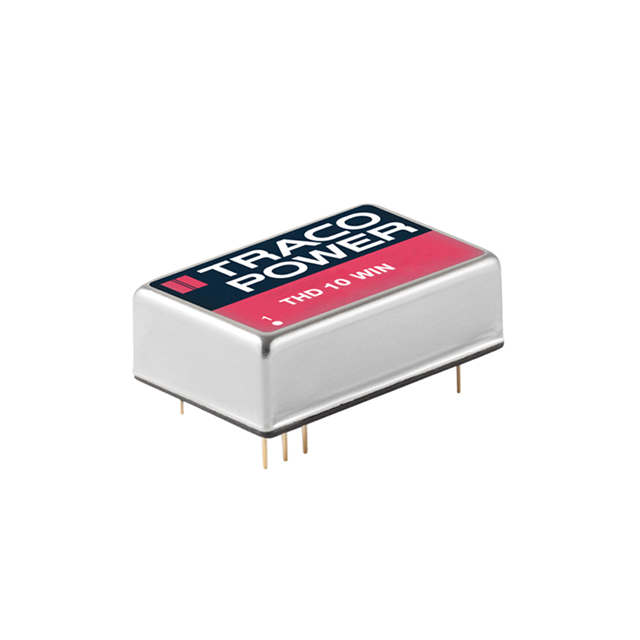

Same model may have multiple batches, images only for reference.

THD 10-2423WIN

Name: THD 10-2423WIN
Brand: Traco Power
SKU: 1335888
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	THD 10-2423WIN
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 10W / Isolated Module DC DC Converter 2 Output 15V -15V 333mA, 333mA 9V - 36V Input
Datasheet	THD 10-2423WIN Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	333mA, 333mA
Power (Watts)	10 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	87%
Mounting	Through Hole
Case / Package	24-DIP Module, 9 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	THD 10
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	THD10-2423WIN-ND,THD10-2423WIN,THD 10-2423WIN-ND,1951-3079
Standard Package	10
Win Source Part Number	1335888-THD 10-2423WIN
Ultra Librarian 3D Model	Ultra Librarian THD 10-2423WIN CAD Model

Alternative Products

Description

This DC DC converter electronic component is manufactured by Traco Power and is an isolated module type.

Type: Isolated Module
Power: 10W
Voltage Isolation: 1.5 kV
Number of Outputs: 2
Maximum Current Output: 333mA, 333mA
Voltage Input: 9V to 36V
Supply and Demand: Good
ROHS3 Compliant: True
