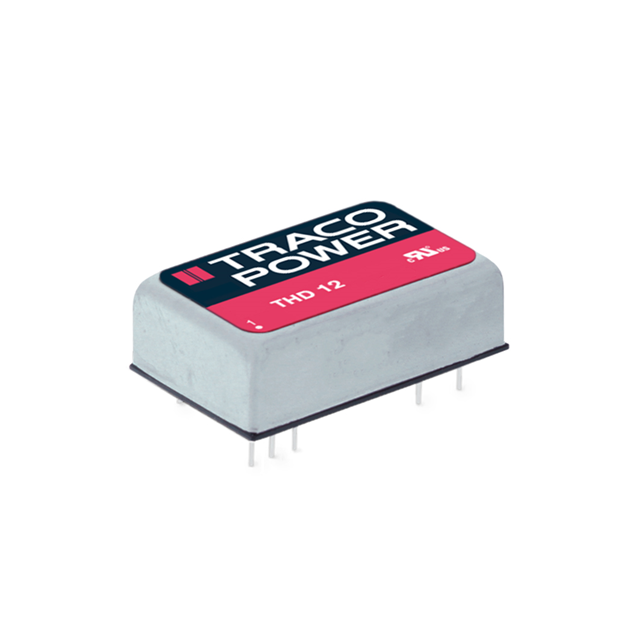

Same model may have multiple batches, images only for reference.

THD 12-4822

Name: THD 12-4822
Brand: Traco Power
SKU: 1335914
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	THD 12-4822
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 12W / Isolated Module DC DC Converter 2 Output 12V -12V 500mA, 500mA 36V - 75V Input
Datasheet	THD 12-4822 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	500mA, 500mA
Power (Watts)	12 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	88%
Mounting	Through Hole
Case / Package	24-DIP Module, 8 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	THD 12
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	THD 12-4822-ND,THD12-4822
Standard Package	10
Win Source Part Number	1335914-THD 12-4822
Ultra Librarian 3D Model	Ultra Librarian THD 12-4822 CAD Model

Description

The THD 12-4822 from Traco Power is a DC-DC converter that provides an output of 12V and -12V.

Output: 12V and -12V
Power Rating: 12W
Efficiency: 88%
Mounting: Through-hole
Size: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Features: Remote on/off, OVP, SCP, and UVLO
Application: ITE (Commercial)
Voltage Isolation: 1.5kV
Outputs: Two
Maximum Output Current: 500mA each
Input Voltage: 36V to 75V
Operating Temperature: -40°C to 85°C (with derating)
Other Part Numbers: THD 12-4822-ND and THD12-4822
RoHS3 compliant: True
