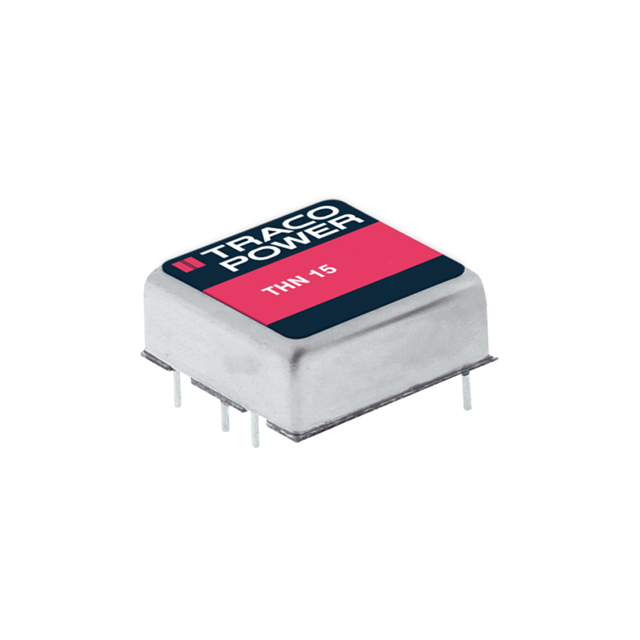

THN 15-2421 Real Image
Same model may have multiple batches, images only for reference.

THN 15-2421

Part No THN 15-2421
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 15W / Isolated Module DC DC Converter 2 Output 5V -5V 1.5A, 1.5A 18V - 36V Input
Datasheet
THN 15-2421 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 1.5A, 1.5A
Power (Watts) 15 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OVP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 85%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number THN 15
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number THN15-2421,THN 15-2421-ND
Standard Package 10
Win Source Part Number 1335978-THN 15-2421
Ultra Librarian 3D Model Ultra Librarian THN 15-2421 CAD Model

Description

The THN 15-2421 is an isolated module DC-DC converter manufactured by Traco Power.

  • Win Source Part Number: 1335978
  • Mounting Type: Board Mount
  • Features: Remote On/Off, OVP, SCP
  • Package: Tube
  • Size / Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
  • Application: ITE (Commercial)
  • Standard Package: 10
  • Mounting Type: Through Hole
  • Power: 15 Watts
  • Number of Outputs: 2
  • Current Output (Max): 1.5A, 1.5A
  • Voltage Input: 18V to 36V
  • Voltage Output: 5V, -5V
  • Efficiency: 85 percent
  • Operating Temperature: -40°C ~ 85°C (With Derating)
  • Case / Package: 6-DIP Module
  • ECCN: EAR99
  • REACH Status: REACH unaffected
  • HTSUS: 8504.40.9580
  • Other Part Numbers: THN15-2421, THN 15-2421-ND
  • Base Product Number: THN 15
  • RoHS: ROHS3 Compliant
