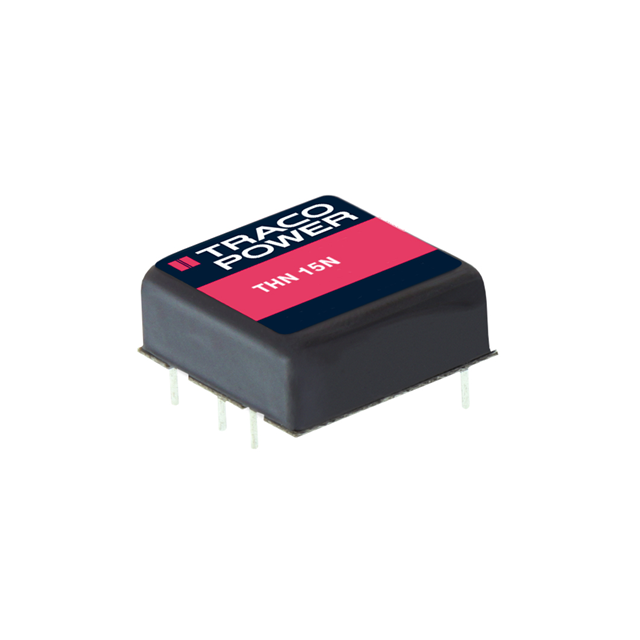

THN 15-4812N

Name: THN 15-4812N
Brand: Traco Power
SKU: 1336005
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	THN 15-4812N
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 16W / Isolated Module DC DC Converter 1 Output 12V 1.3A 36V - 75V Input
Datasheet	THN 15-4812N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Current - Output (Max)	1.3A
Power (Watts)	16 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	89%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number	THN 15
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	THN15-4812NINACTIVE,THN15-4812N-ND,1951-3290,THN15-4812N
Standard Package	10
Win Source Part Number	1336005-THN 15-4812N
Ultra Librarian 3D Model	Ultra Librarian THN 15-4812N CAD Model

Alternative Products

Description

The Traco Power THN 15-4812N is a DC-DC converter module that provides a 12V output voltage from a 36-75V input voltage range.

Maximum Output Current: 1.3A
Power: 16W
Application: ITE applications
Features: Remote On/Off, OCP, OVP, and SCP
Module Package: 6-DIP module
Size: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Efficiency: 89%
RoHS: ROHS3 compliant
Voltage Isolation: 1.6 kV
