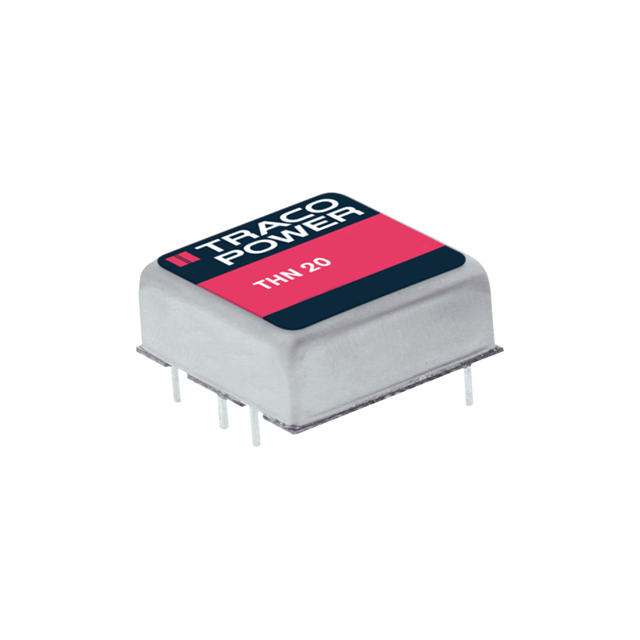

THN 20-2422 Real Image
Same model may have multiple batches, images only for reference.

THN 20-2422

Part No THN 20-2422
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 20W / Isolated Module DC DC Converter 2 Output 12V -12V 833mA, 833mA 18V - 36V Input
Datasheet
THN 20-2422 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 833mA, 833mA
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OVP, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 90%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number THN 20
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number THN20-2422,THN 20-2422-ND
Standard Package 10
Win Source Part Number 1336047-THN 20-2422
Ultra Librarian 3D Model Ultra Librarian THN 20-2422 CAD Model

Description

The THN 20-2422 isolated module DC-DC converter is manufactured by Traco Power and comes in a tube packaging with a standard package of 10 units.

  • Power: 20W
  • Voltage Isolation: 1.5kV
  • Type: Isolated module
  • Features: Remote on/off, overvoltage protection (OVP), short circuit protection (SCP)
  • Size/Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
  • Application: ITE (Commercial)
  • Mounting Type: Through-hole
  • Voltage Input: 18V to 36V
  • Number of Outputs: Two
  • Maximum Current Output: 833mA each
  • Voltage Output 1: 12V
  • Voltage Output 2: -12V
  • Efficiency: 90%
  • Operating Temperature Range: -40°C to 75°C (with derating)
