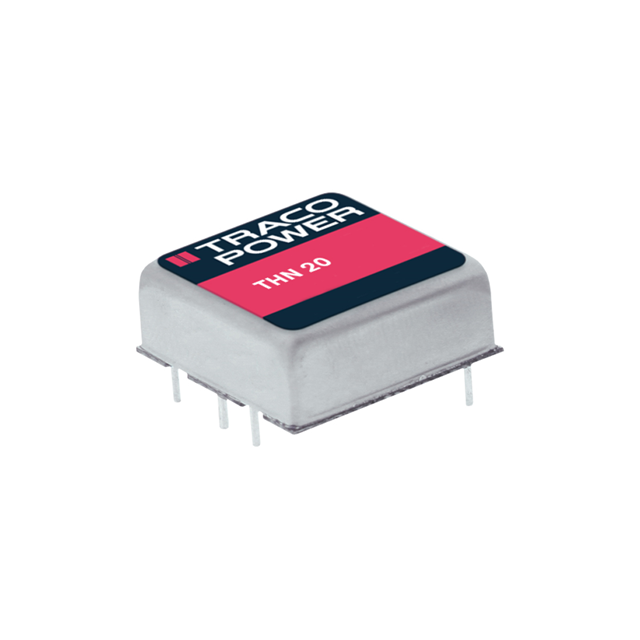

THN 20-4810

Name: THN 20-4810
Brand: Traco Power
SKU: 1336030
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	THN 20-4810
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 15W / Isolated Module DC DC Converter 1 Output 3.3V 4.5A 36V - 75V Input
Datasheet	THN 20-4810 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	3.3V
Current - Output (Max)	4.5A
Power (Watts)	15 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OVP, SCP
Temperature Range - Operating	-40°C ~ 75°C (With Derating)
Efficiency	86%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number	THN 20
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	THN 20-4810-ND,THN20-4810
Standard Package	10
Win Source Part Number	1336030-THN 20-4810
Ultra Librarian 3D Model	Ultra Librarian THN 20-4810 CAD Model

Alternative Products

Description

The Traco Power THN 20-4810 is an isolated module type DC-DC converter.

Power: 15 W
Voltage Isolation: 1.5 kV
Features: Remote on/off, OVP, and SCP
Size: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Standard Package: 10
Mounting Type: Through-hole
Application: ITE (Commercial)
Outputs: One
Maximum Current: 4.5A
Input Voltage Range: 36V to 75V
Output Voltage: 3.3V
Efficiency: 86%
Operating Temperature Range: -40°C ~ 75°C (With Derating)
