Same model may have multiple batches, images only for reference.

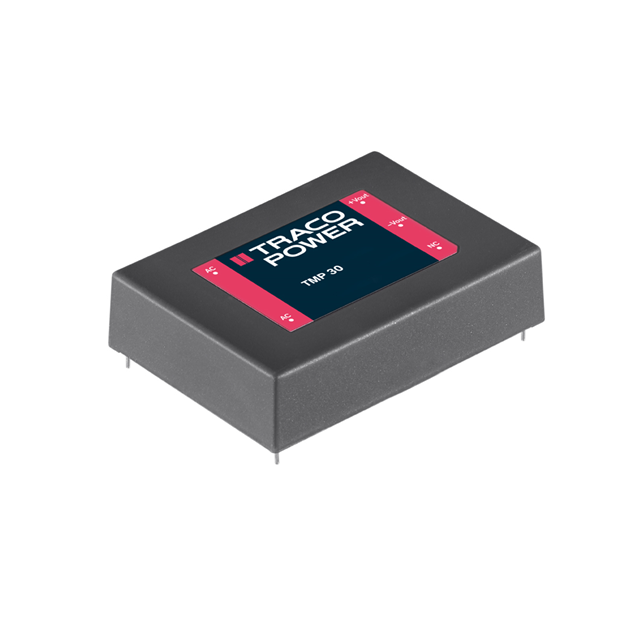

TMP 30512 Real Image
Same model may have multiple batches, images only for reference.

TMP 30512

Part No TMP 30512
Manufacturer Traco Power
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 5V +/-12V 29W / Enclosed AC DC Converters 3 Output 5V 12V -12V 3A, 600mA, 600mA 85 ~ 264 VAC, 120 ~ 370 VDC Input
Datasheet
TMP 30512 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>AC DC Converters
Mfr Traco Power
Series TMP (30W)
Package Box
Type Enclosed
Number of Outputs 3
Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 5V
Voltage - Output 2 12V
Voltage - Output 3 -12V
Current - Output (Max) 3A, 600mA, 600mA
Power (Watts) 29 W
Applications ITE (Commercial)
Features Universal Input
Temperature Range - Operating -25°C ~ 70°C (With Derating)
Efficiency 76%
Mounting Type Through Hole
Package / Case 7-DIP Module
Dimension 3.50" L x 2.50" W x 0.85" H (88.9mm x 63.5mm x 21.7mm)
Approval Agency CB, CE, cULus, cURus
Line Regulation 1%, 3%
Load Regulation ±1%
Base Product Number TMP 30
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names 1951-1169
Standard Package 5
Win Source Part Number 1100408-TMP 30512
Ultra Librarian 3D Model Ultra Librarian TMP 30512 CAD Model

Description

The 1100408-TMP 30512 is a high-quality enclosed AC-DC converter designed for use in ITE (Commercial) applications.

  • Input Voltage: 85 ~ 264 VAC and 120 ~ 370 VDC
  • Outputs: Three
  • Output Current: 3A (5V), 600mA (12V), and 600mA (-12V)
  • Output Voltages: 5V, 12V, and -12V
  • Efficiency: 76%
  • Line Regulation: 1% and 3%
  • Load Regulation: ±1%
  • Package: 7-DIP module
  • Mounting: Through-hole
  • Operating Temperature: -25°C to 70°C (with derating)
  • Dimensions: 3.50" L x 2.50" W x 0.85" H (88.9mm x 63.5mm x 21.7mm)
  • Standard Package: 5
  • Cross-References: PXD3024WD05, UEI30-050-Q12P-C, UEI30-050-Q12N-C, PXD1524S05, RP15-2405SFW, PXA15-24S05/NTTMP30512
  • Approvals: CB, CE, cULus, and cURus
