Same model may have multiple batches, images only for reference.

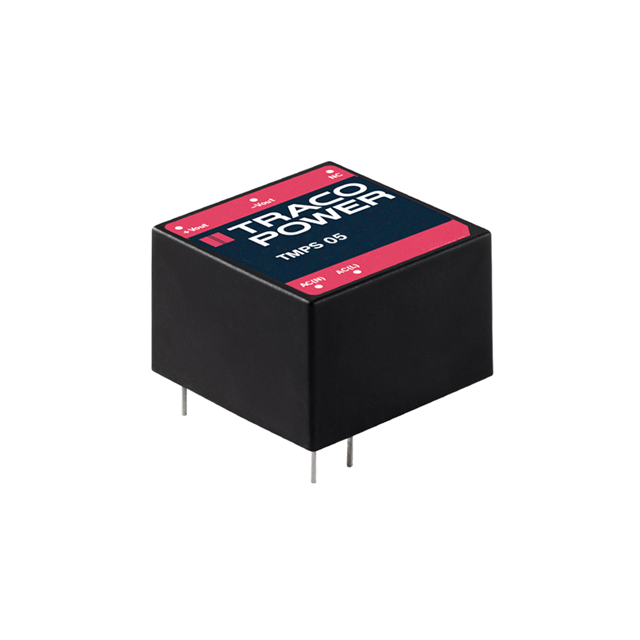

TMPS 05-103 Real Image
Same model may have multiple batches, images only for reference.

TMPS 05-103

Part No TMPS 05-103
Manufacturer Traco Power
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 3.3V 5W / Enclosed AC DC Converters 1 Output 3.3V 1.515A 85 ~ 264 VAC, 120 ~ 370 VDC Input
Datasheet
TMPS 05-103 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>AC DC Converters
Manufacturer Traco Power
Packaging Box
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 3.3V
Current - Output (Max) 1.515A
Power (Watts) 5 W
Applications Household Appliances, ITE (Commercial)
Features Universal Input
Temperature Range - Operating -25°C ~ 70°C (With Derating)
Efficiency 74%
Mounting Through Hole
Case / Package 5-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.64" H (25.4mm x 25.4mm x 16.3mm)
Approval Agency CB, CE, cURus
Base Product Number TMPS 05
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Part Number TMPS05-103,TMPS05-103-ND,1951-3182,2266-TMPS 05-103,TMPS 05-103-ND
Standard Package 10
Win Source Part Number 1336096-TMPS 05-103
Ultra Librarian 3D Model Ultra Librarian TMPS 05-103 CAD Model

Description

The Traco Power TMPS 05-103 is an AC DC converter in the category of power supplies - board mount.

  • Enclosure Type: Enclosed
  • Input: Universal input feature
  • Size/Dimension: 1.00" L x 1.00" W x 0.64" H (25.4mm x 25.4mm x 16.3mm)
  • Application: household appliances and ITE (commercial) applications
  • Power: 5 W
  • Voltage Input: 85 ~ 264 VAC, 120 ~ 370 VDC
  • Output(s): One output
  • Output Current (Max): 1.515A
  • Output Voltage: 3.3V
  • Efficiency: 74%
  • ROHS Compliance: ROHS3 compliant
