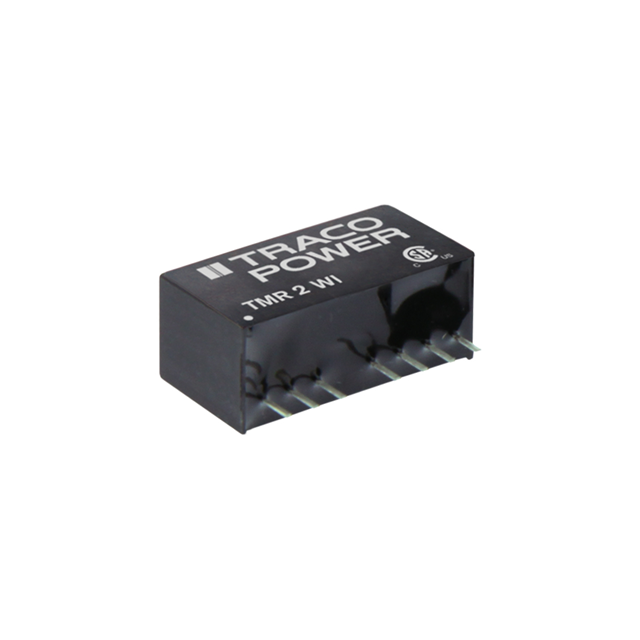

TMR 2-2422WI Real Image
Same model may have multiple batches, images only for reference.

TMR 2-2422WI

Part No TMR 2-2422WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 85mA, 85mA 9V - 36V Input
Datasheet
TMR 2-2422WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 85mA, 85mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 77%
Mounting Through Hole
Case / Package 9-SIP Module, 7 Leads
Size / Dimension 1.02" L x 0.37" W x 0.49" H (26.0mm x 9.3mm x 12.5mm)
Base Product Number TMR 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2354
Standard Package 10
Win Source Part Number 1336168-TMR 2-2422WI
Ultra Librarian 3D Model Ultra Librarian TMR 2-2422WI CAD Model

Description

The Traco Power TMR 2-2422WI is a DC DC Converter that comes in a tube packaging.

  • Type: Isolated Module
  • Feature: Remote on/off feature and SCP
  • Size/Dimension: 1.02" L x 0.37" W x 0.49" H (26.0mm x 9.3mm x 12.5mm)
  • Application: ITE (Commercial)
  • Standard Package: 10
  • Mounting Type: Through Hole
  • Power Rating: 2 W
  • Voltage Isolation: 1.5 kV
  • Outputs: Two
  • Maximum Output Current 1: 85mA
  • Maximum Output Current 2: 85mA
  • Input Voltage: 9V to 36V
  • Output Voltage 1: 12V
  • Output Voltage 2: -12V
  • Efficiency: 77%
  • Operating Temperature: -40°C to 85°C (With Derating)
  • Case/Package: 9-SIP Module, 7 Leads
  • ECCN: EAR99
  • MSL Level: Not Applicable
