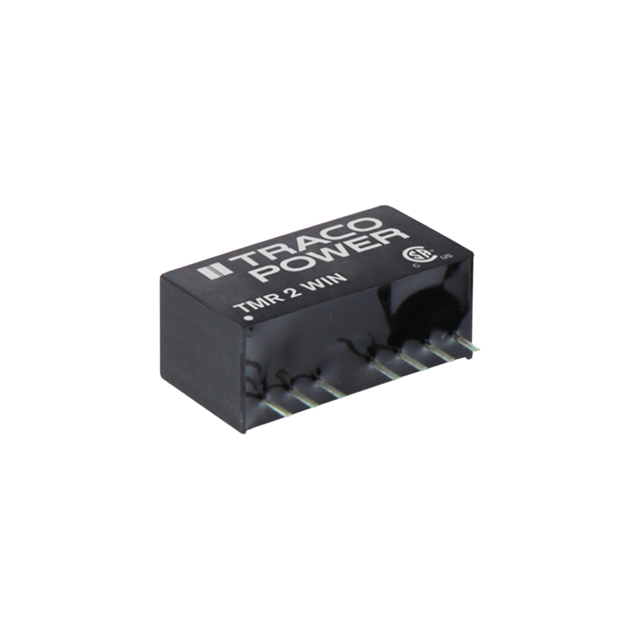

The TMR 2-2422WIN is a 2W isolated DC/DC converter from Traco Power. It's designed to provide a reliable and regulated power source with input-to-output isolation. This converter is suitable for a variety of applications where electrical isolation is required and offers a wide input voltage range, regulated output voltage, and continuous short-circuit protection.

Applications:

• Industrial Automation: Providing isolated power for sensors, actuators, and control circuitry.
• Instrumentation: Powering sensitive measurement equipment, ensuring accuracy and safety.
• Medical Devices: Supplying isolated power in non-critical medical applications.
• Telecommunications Equipment: Providing isolation for communication interfaces.
• Transportation Systems: Used in various isolated power applications within vehicles.

Features:

• 2W Isolated DC/DC Converter: Provides a stable and isolated power output.
• Wide 4:1 Input Voltage Range: Accommodates a broad range of input voltages (9-36VDC).
• Output Voltage: +/-12 VDC
• I/O Isolation: 3000 VDC.
• Operating Temperature Range: -40°C to +85°C.
• Short-Circuit Protection: Protects the converter from damage due to short circuits.
• Remote On/Off Control: Offers remote control capabilities.
• Industry-Standard Pinout: Simplifies integration into existing designs.

Benefits:

• Reliable Power: Provides a stable and consistent power supply for critical applications.
• Electrical Isolation: Protects sensitive circuitry from voltage spikes and ground loops.
• Wide Operating Temperature: Suitable for use in harsh environments.
• Easy Integration: Standard pinout simplifies the design process.
• Remote Control: Offers flexibility in power management.

Additional Details:

The TMR 2-2422WIN is designed for demanding applications where isolation and reliable power are essential. Its compact size and industry-standard pinout allow for easy integration into new and existing designs. The converter meets relevant safety standards, ensuring safe and reliable operation.
