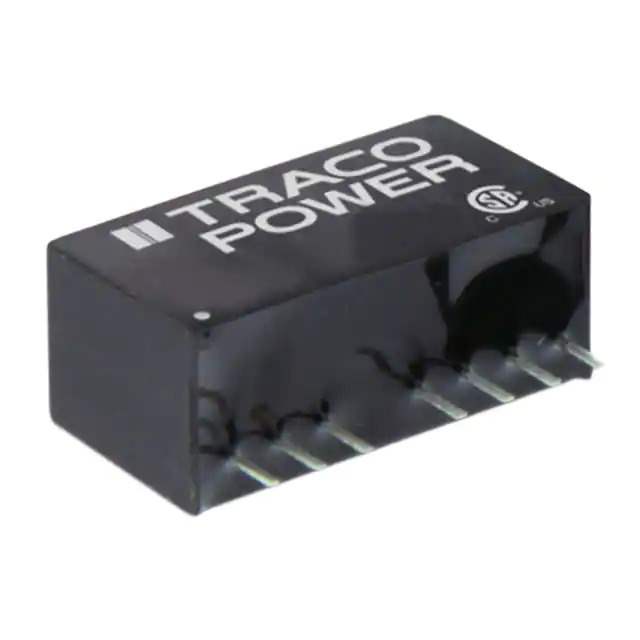

The TMR 2423 is a 2W isolated module DC-DC converter from Traco Power.

• Features: Remote On/Off, Short Circuit Protection (SCP)
• Packaging: Tube
• Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
• Application: ITE (Commercial)
• Standard Package: 10 pieces
• Power (Watts): 2W
• Voltage - Isolation: 1.5 kV
• Output: 2
• Current - Output 1 (Max): 65mA
• Current - Output 2 (Max): 65mA
• Voltage - Input (Min): 18V
• Voltage - Input (Max): 36V
• Voltage - Output 1: 15V
• Voltage - Output 2: -15V
• Efficiency: 82%
• Mounting Type: Through Hole
• Package / Case: 8-SIP Module, 7 Leads
• Operating Temperature: -40°C ~ 85°C
• MSL Level: Not Applicable
• HTSUS: 8504.40.9580
