Same model may have multiple batches, images only for reference.

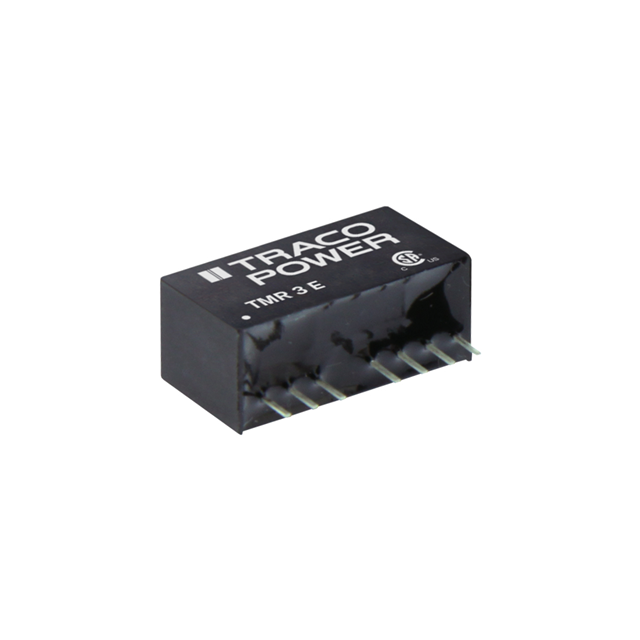

TMR 3-0522E Real Image
Same model may have multiple batches, images only for reference.

TMR 3-0522E

Part No TMR 3-0522E
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 4.5V - 9V Input
Datasheet
TMR 3-0522E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 79%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm)
Base Product Number TMR 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMR3-0522E,TMR 3-0522E-ND
Standard Package 10
Win Source Part Number 1336180-TMR 3-0522E
Ultra Librarian 3D Model Ultra Librarian TMR 3-0522E CAD Model

Description

The Traco Power TMR 3-0522E is an isolated module DC-DC converter that is designed for use in ITE (Commercial) applications.

  • Power Rating: 3 watts
  • Features: Remote on/off and SCP
  • Efficiency: 79 percent
  • Temperature Range: -40°C to 85°C with derating
  • Voltage Isolation: 1.5 kV
  • Package: Compact 8-SIP module with 7 leads
  • Outputs: Two
  • Voltage Output 1: 12V
  • Voltage Output 2: -12V
  • Current Output 1: 125mA
  • Current Output 2: 125mA
