Same model may have multiple batches, images only for reference.

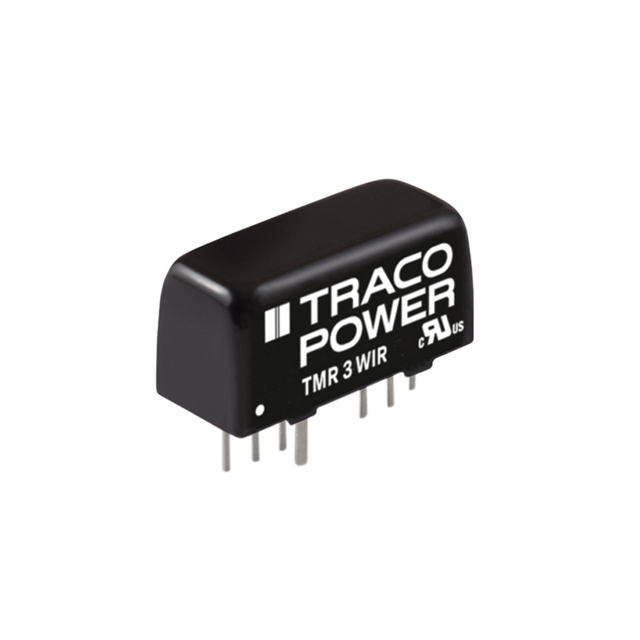

TMR 3-4822WIR Real Image
Same model may have multiple batches, images only for reference.

TMR 3-4822WIR

Part No TMR 3-4822WIR
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 18V - 75V Input
Datasheet
TMR 3-4822WIR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 3 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Efficiency 82%
Mounting Through Hole
Case / Package 8-SIP Module
Size / Dimension 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Base Product Number TMR 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2002
Standard Package 10
Win Source Part Number 1336217-TMR 3-4822WIR
Ultra Librarian 3D Model Ultra Librarian TMR 3-4822WIR CAD Model

Description

The Traco Power electronic component with Win Source Part Number 1336217-TMR 3-4822WIR is a high-quality isolated module type DC DC Converter with a power of 3 W.

  • Voltage Isolation: 3 kV
  • Outputs: two outputs
  • Current - Output: 125mA each
  • Voltage Input: 18V to 75V
  • Voltage Output 1: 12V
  • Voltage Output 2: -12V
  • Type: standard package product
  • Mounting: through-hole
