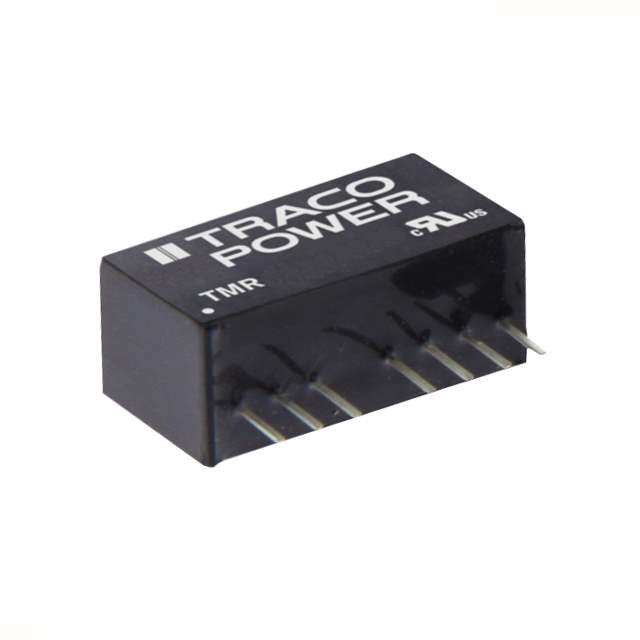

Same model may have multiple batches, images only for reference.

TMR 6-0522

Name: TMR 6-0522
Brand: Traco Power
SKU: 1336252
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TMR 6-0522
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 6W / Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 4.5V - 9V Input
Datasheet	TMR 6-0522 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	250mA, 250mA
Power (Watts)	6 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 65°C
Efficiency	84%
Mounting	Through Hole
Case / Package	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Base Product Number	TMR 6
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TMR6-0522,TMR 6-0522-ND,TMR6-0522-ND,1951-3203
Standard Package	10
Win Source Part Number	1336252-TMR 6-0522
Ultra Librarian 3D Model	Ultra Librarian TMR 6-0522 CAD Model

Alternative Products

Description

The Traco Power TMR 6-0522 is a 6W isolated module DC-DC converter with two outputs.

Voltage Isolation: 1.6 kV
Mounting: Through Hole
Size: 0.86 inches in length, 0.36 inches in width, and 0.44 inches in height
Application: ITE (Commercial)
Features: Remote On/Off and SCP
Efficiency: 84%
Temperature Range: -40°C to 65°C
Input Voltage: 4.5V to 9V
Output Voltage (Output 1): 12V
Output Voltage (Output 2): -12V
