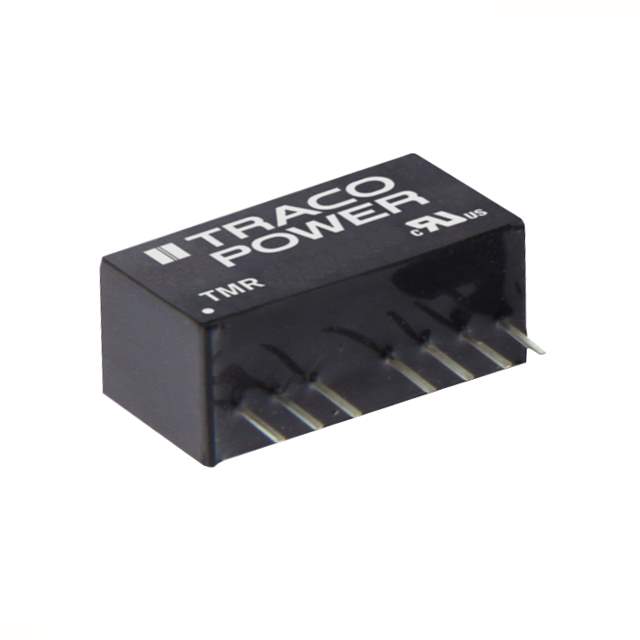

Same model may have multiple batches, images only for reference.

TMR 6-4823

Name: TMR 6-4823
Brand: Traco Power
SKU: 1336272
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TMR 6-4823
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 6W / Isolated Module DC DC Converter 2 Output 15V -15V 200mA, 200mA 36V - 75V Input
Datasheet	TMR 6-4823 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	200mA, 200mA
Power (Watts)	6 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 65°C
Efficiency	85%
Mounting	Through Hole
Case / Package	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Base Product Number	TMR 6
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TMR6-4823,TMR 6-4823-ND
Standard Package	10
Win Source Part Number	1336272-TMR 6-4823
Ultra Librarian 3D Model	Ultra Librarian TMR 6-4823 CAD Model

Alternative Products

Description

The TMR 6-4823 is a 6W isolated module DC DC converter manufactured by Traco Power.

Voltage Isolation: 1.6 kV
Temperature Range: -40°C ~ 65°C
Outputs: Two
Current Output: 200mA each
Win Source Part Number: 1336272-TMR 6-4823
