Same model may have multiple batches, images only for reference.

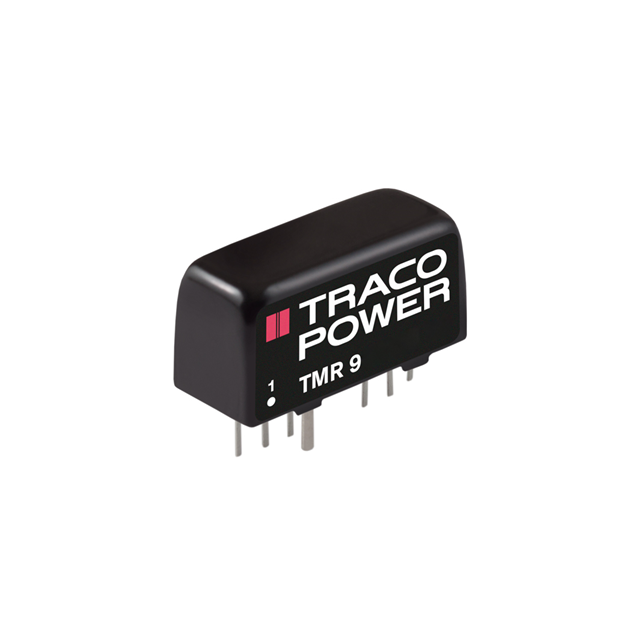

TMR 9-4822 Real Image
Same model may have multiple batches, images only for reference.

TMR 9-4822

Part No TMR 9-4822
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 9W / Isolated Module DC DC Converter 2 Output 12V -12V 375mA, 375mA 36V - 75V Input
Datasheet
TMR 9-4822 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 375mA, 375mA
Power (Watts) 9 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 87%
Mounting Through Hole
Case / Package 8-SIP Module, 6 Leads
Size / Dimension 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Base Product Number TMR 9
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMR9-4822,TMR 9-4822-ND
Standard Package 10
Win Source Part Number 1336331-TMR 9-4822
Ultra Librarian 3D Model Ultra Librarian TMR 9-4822 CAD Model

Description

The Traco Power isolated module is a DC DC converter with a power rating of 9W and a voltage isolation of 1.6 kV.

  • Module Type: Isolated
  • Power: 9W
  • Voltage Isolation: 1.6 kV
  • Current Output: 375mA, 375mA
  • Voltage Output: 12V, -12V
  • Packaging: Tube
  • Size: 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
  • Application: ITE (Commercial)
  • Mounting: Through-hole
  • Features: Remote On/Off and SCP
  • Efficiency: 87%
  • Temperature Range: -40°C ~ 85°C (With Derating)
  • Case/Package: 8-SIP Module, 6 Leads
