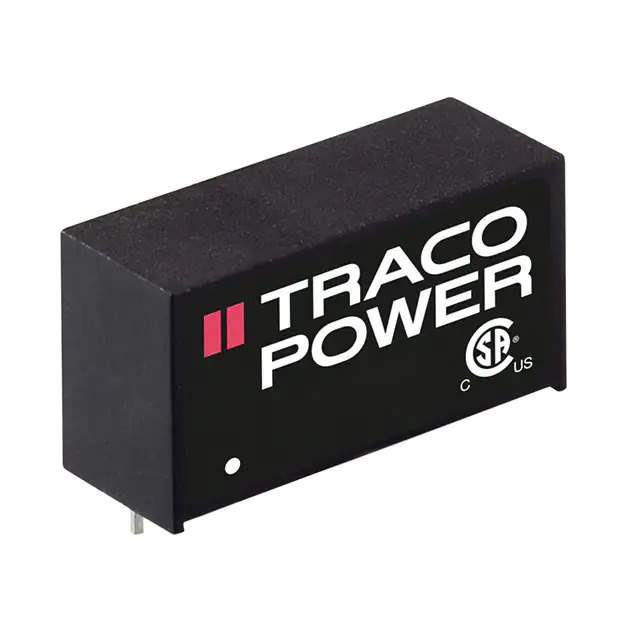

Same model may have multiple batches, images only for reference.

TMV 1212EN

Name: TMV 1212EN
Brand: Traco Power
SKU: 847878
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TMV 1212EN
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 1W
Datasheet	TMV 1212EN Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Traco Power
Series	TMV-EN (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	12V
Current - Output (Max)	80mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-25°C ~ 85°C (With Derating)
Efficiency	66%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 4 Leads
Size / Dimension	0.87" L x 0.30" W x 0.49" H (22.0mm x 7.5mm x 12.5mm)
Base Product Number	TMV 1212
Standard Package	10 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	847878-TMV 1212EN
Ultra Librarian 3D Model	Ultra Librarian TMV 1212EN CAD Model

Alternative Products

Description

The TMV-EN 1212EN is a 1W DC-DC converter module from Traco Power.

Series: TMV-EN.
Application: Board mount.
Package: Tube.
Dimensions: 0.87" L x 0.30" W x 0.49" H.
Protection: Short circuit protection (SCP).
Output Voltage: 12V.
Maximum Output Current: 80mA.
Applications: Commercial ITE.
Efficiency: 66%.
Voltage Isolation: 3 kV.
Input Voltage Range: 10.8V to 13.2V.
Mounting: Through-hole.
Package: 7-SIP package containing 4 leads.
Operating Temperature Range: -25°C to 85°C with derating.
Product Status: Active.
Standard Package: 10 pcs.
