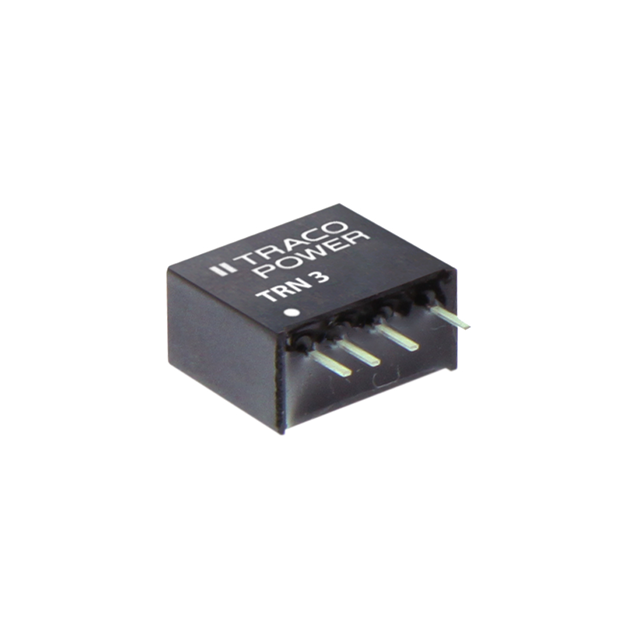

Same model may have multiple batches, images only for reference.

TRN 3-0523

Name: TRN 3-0523
Brand: Traco Power
SKU: 1336385
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TRN 3-0523
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 4.5V - 13.2V Input
Datasheet	TRN 3-0523 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	13.2V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	100mA, 100mA
Power (Watts)	3 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	80%
Mounting	Through Hole
Case / Package	5-SIP Module
Size / Dimension	0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm)
Base Product Number	TRN 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TRN3-0523,2266-TRN 3-0523,TRN 3-0523-ND
Standard Package	10
Win Source Part Number	1336385-TRN 3-0523
Ultra Librarian 3D Model	Ultra Librarian TRN 3-0523 CAD Model

Alternative Products

Description

The 1336385-TRN 3-0523 is a DC-DC converter component that is designed for board mount applications.

Manufacturer: Traco Power
Packaging: Tube
Type: Isolated module
Feature: SCP feature
Size/Dimension: 0.47 inches L x 0.30 inches W x 0.43 inches H (11.9mm x 7.7mm x 11.0mm)
Application: ITE (Commercial)
Standard Package: 10
Mounting Style: Through-hole
Power Output: 3 watts
Voltage Isolation: 1.6 kV
Outputs: Two outputs
Maximum Output Current: 100mA
Input Voltage: 4.5V to 13.2V
Output Voltage: 15V and -15V
Efficiency: 80 percent
Operating Temperature: -40°C to 85°C
ECCN: EAR99
REACH: Unaffected
HTSUS Code: 8504.40.9580
