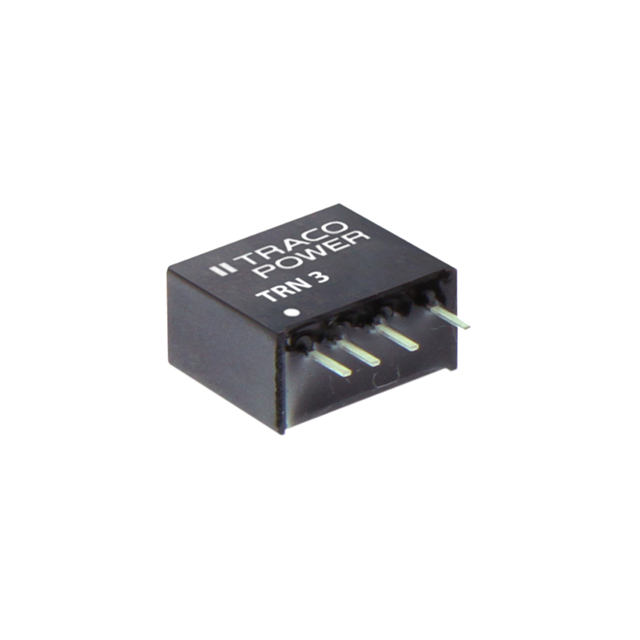

TRN 3-4821

Part No TRN 3-4821
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 3W / Isolated Module DC DC Converter 2 Output 5V -5V 300mA, 300mA 36V - 75V Input
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 300mA, 300mA
Power (Watts) 3 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 77%
Mounting Through Hole
Case / Package 5-SIP Module
Size / Dimension 0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm)
Base Product Number TRN 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TRN 3-4821-ND,TRN3-4821
Standard Package 10
Win Source Part Number 1336400-TRN 3-4821
Ultra Librarian 3D Model Ultra Librarian TRN 3-4821 CAD Model

Description

The TRN 3-4821 by Traco Power is a DC DC converter that belongs to the Power Supplies - Board Mount>DC DC Converters category of electronic components. It is an isolated module type device that comes in a 5-SIP Module case/package. The TRN 3-4821 has a voltage isolation of 1.6 kV and has two outputs with a maximum current output of 300mA each. It has a power rating of 3 W and an efficiency of 77%. The TRN 3-4821 is designed for use in ITE (Commercial) applications and can operate in a temperature range of -40°C to 85°C. The TRN 3-4821 is a highly durable and reliable component that can be used in various electronic devices.
