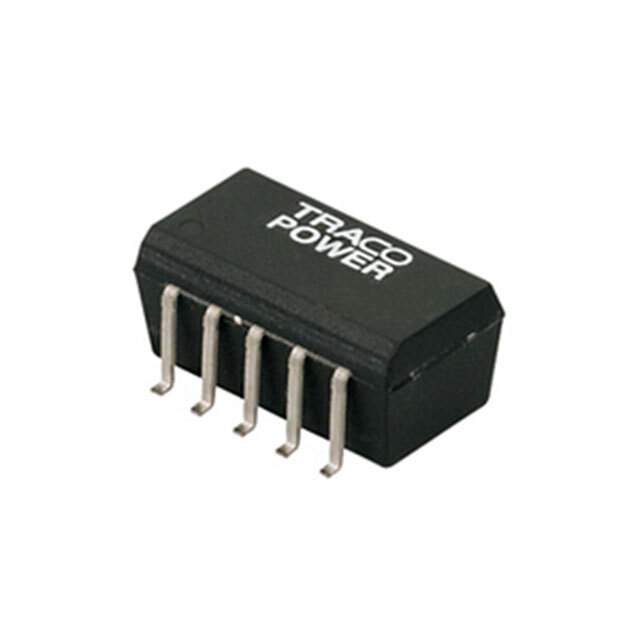

Same model may have multiple batches, images only for reference.

TSM 1215D

Name: TSM 1215D
Brand: Traco Power
SKU: 1336405
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSM 1215D
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 900MW / Isolated Module DC DC Converter 2 Output 15V -15V 30mA, 30mA 10.8V - 13.2V Input
Datasheet	TSM 1215D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	30mA, 30mA
Power (Watts)	900 mW
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	80%
Mounting	Surface Mount
Case / Package	18-SMD Module, 10 Leads
Size / Dimension	0.60" L x 0.31" W x 0.28" H (15.2mm x 8.0mm x 7.1mm)
Base Product Number	TSM 1215
RoHS Status	ROHS3 Compliant
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TSM1215D,TSM 1215D-ND,TSM1215D-ND,1951-3236
Standard Package	10
Win Source Part Number	1336405-TSM 1215D
Ultra Librarian 3D Model	Ultra Librarian TSM 1215D CAD Model

Alternative Products

Description

The Traco Power TSM 1215D is an isolated module DC-DC converter designed for board mount applications.

Power Output: 900mW
Voltage Isolation: 1kV
Outputs: Two
Output 1 Voltage: 15V
Output 2 Voltage: -15V
Maximum Output Current (Output 1): 30mA
Maximum Output Current (Output 2): 30mA
Temperature Range: -40°C to 85°C
Packaging: Tube
Application: Commercial ITE
