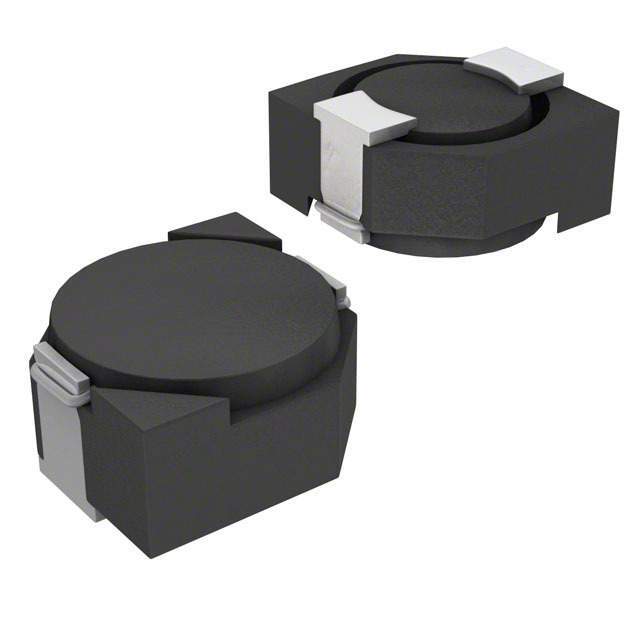

Same model may have multiple batches, images only for reference.

HM66-801R5LFTR13

Name: HM66-801R5LFTR13
Brand: TT Electronics
SKU: 776065
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	HM66-801R5LFTR13
Manufacturer	TT Electronics
Catalog	Fixed Inductors
Description	FIXED IND 1.5UH 10A 8.1 MOHM SMD / Inductor Power Shielded Wirewound 1.5uH 20% 100KHz 10A 0.0081Ohm DCR T/R
Datasheet	HM66-801R5LFTR13 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	TT Electronics/BI Magnetics
Series	HM66
Packaging	Reel package
Type	Wirewound
Inductance	1.5μH
Tolerance	±20%
Current Rating	10A
Shielding	Shielded
DC Resistance (DCR)	8.1 mOhm Max
Operating Temperature Range	-40°C ~ 125°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Maximum)	0.157" (4.00mm)
Win Source Part Number	776065-HM66-801R5LFTR13
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	800
Family Name	HM66
ECCN	EAR99
Country of Origin	China, Malaysia
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian HM66-801R5LFTR13 CAD Model

Alternative Products

Description

The TT Electronics/BI Magnetics HM66 series wirewound inductors offer a high-quality solution for your inductor needs.

Series: HM66
Inductor Type: Shielded
Operating Temperature: -40°C to 125°C
Current Rating: 10A
Inductance: 1.5μH
Tolerance: ±20%
Mounting Type: SMD
Package: Nonstandard
DC Resistance (DCR): 8.1 mOhm Max
Dimensions: 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height: 0.157" (4.00mm)
ECCN: EAR99
Manufacturer: China, Malaysia
Estimated EOL Date: 2029
Market Popularity: Medium
Supply/Demand Status: Limited
Quantity Per Package: 800
