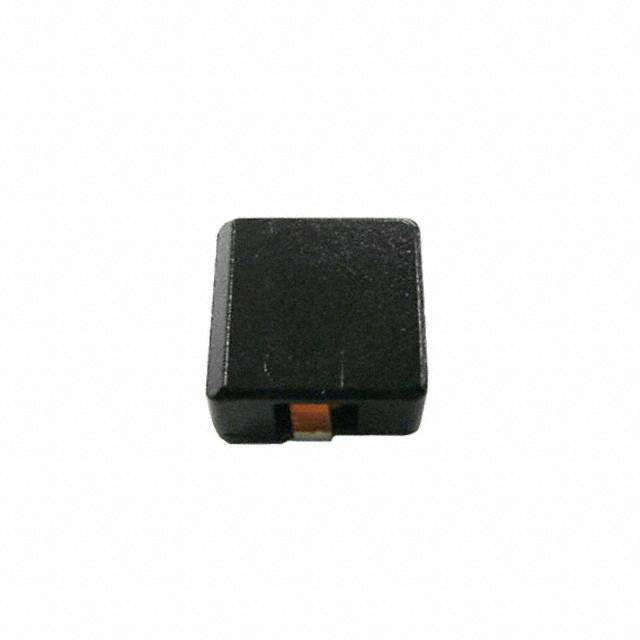

Same model may have multiple batches, images only for reference.

HM73-15R70LFTR13

Name: HM73-15R70LFTR13
Brand: TT Electronics
SKU: 776066
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	HM73-15R70LFTR13
Manufacturer	TT Electronics
Catalog	Fixed Inductors
Description	FIXED IND 700NH 16A 1.5 MOHM SMD / Inductor Power Shielded Wirewound 0.7uH/0.65uH 20% 100KHz 16A 0.0015Ohm DCR T/R
Datasheet	HM73-15R70LFTR13 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	TT Electronics/BI Magnetics
Series	HM73
Packaging	Reel package
Inductance	700nH
Tolerance	±20%
Current Rating	16A
Current - Saturation	30A
Shielding	Shielded
DC Resistance (DCR)	1.5 mOhm Max
Operating Temperature Range	-40°C ~ 155°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.461" L x 0.413" W (11.70mm x 10.50mm)
Height - Seated (Maximum)	0.220" (5.60mm)
Win Source Part Number	776066-HM73-15R70LFTR13
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	500
Family Name	HM73
ECCN	EAR99
Country of Origin	Malaysia
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian HM73-15R70LFTR13 CAD Model

Alternative Products

Description

The TT Electronics/BI Magnetics HM73-15R70LFTR13 is a shielded inductor with an inductance of 700nH and a current rating of 16A.

Series: HM73
Inductance: 700nH
Current Rating: 16A
Package: Nonstandard
Tolerance: ±20%
DC Resistance: 1.5 mOhm max
Saturation Current: 30A
Operating Temperature: -40°C to 155°C
Packaging: Reel
Quantity Per Package: 500
