Same model may have multiple batches, images only for reference.

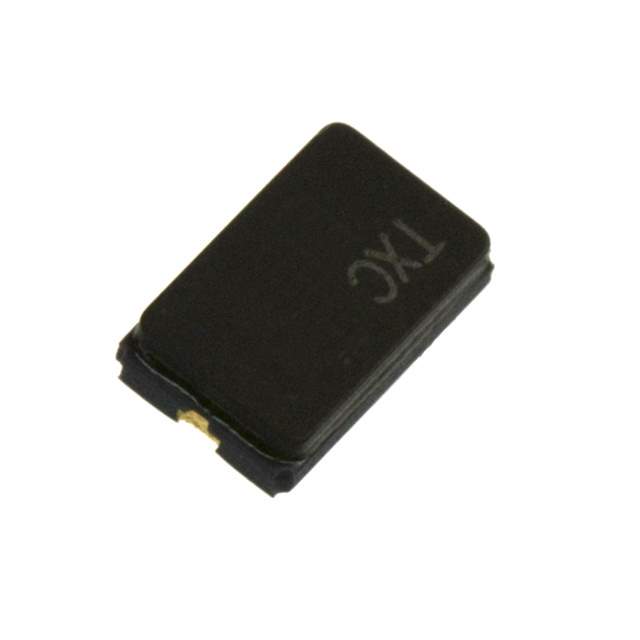

7A-30.000MAAJ-T Real Image
Same model may have multiple batches, images only for reference.

7A-30.000MAAJ-T

Part No 7A-30.000MAAJ-T
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 30.0000MHZ 18PF SMD / 30 MHz ±30ppm Crystal 18pF 50 Ohms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 7A
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 30 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.053" (1.35mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1350540-7A-30.000MAAJ-T
Ultra Librarian 3D Model Ultra Librarian 7A-30.000MAAJ-T CAD Model

Description

The 1350540-7A-30.000MAAJ-T is a surface mount crystal from the 7A series by TXC Corporation.

  • Series: 7A
  • Package: Tape and Reel
  • Dimensions: 0.197 inches length x 0.126 inches width
  • Frequency: 30 MHz
  • Load Capacitance: 18pF
  • ESR: 50 Ohms
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±30ppm
  • Operating Temperature: -20°C to 70°C
  • Status: Obsolete
