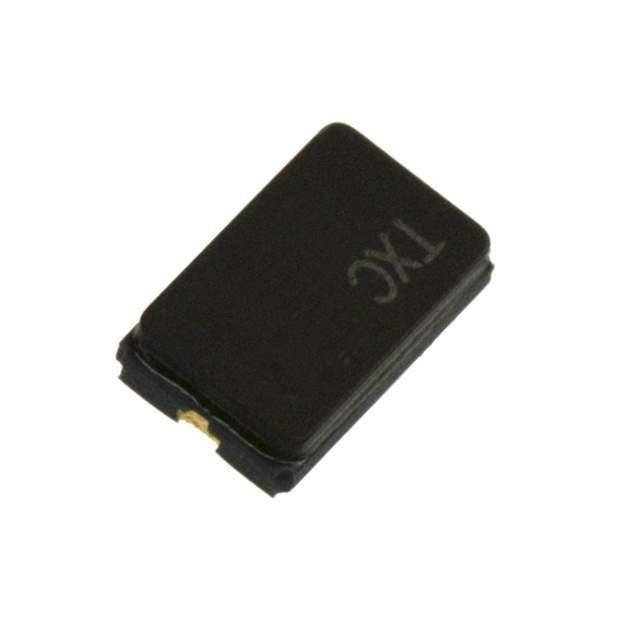

7A08000001 Real Image
Same model may have multiple batches, images only for reference.

7A08000001

Part No 7A08000001
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 8.0000MHZ 20PF SMD / 8 MHz ±20ppm Crystal 20pF 80 Ohms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer TXC CORPORATION
Packaging Reel - TR
Product Status Obsolete
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Surface Mount
Case / Package 2-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.053" (1.35mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Standard Package 1,000
Win Source Part Number 1328363-7A08000001
Ultra Librarian 3D Model Ultra Librarian 7A08000001 CAD Model

Description

The 8 MHz MHz Crystal from TXC CORPORATION is a surface mount crystal with a 0.197" L x 0.126" W (5.00mm x 3.20mm) size and a maximum height of 0.053" (1.35mm).

  • ESR (Equivalent Series Resistance): 80 Ohms
  • Frequency Stability: ±20ppm
  • Frequency Tolerance: ±20ppm
  • Operating Mode: Fundamental
  • Load Capacitance: 20pF
  • Temperature Range: -10°C ~ 70°C
  • Package: 2-SMD, No Lead
  • RoHS Compliant: Yes
  • Obsolete: Yes
  • Standard Package: 1,000
