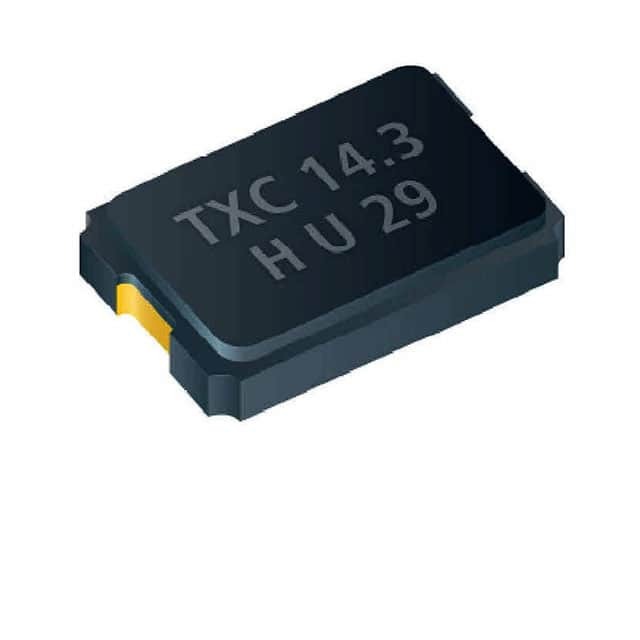

Same model may have multiple batches, images only for reference.
7A54070003
Same model may have multiple batches, images only for reference.

7A54070003

Part No 7A54070003
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 54.0000MHZ 19PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 7A
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 54 MHz
Load Capacitance 19pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.053" (1.35mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 858272-7A54070003
Ultra Librarian 3D Model Ultra Librarian 7A54070003 CAD Model

Description

The 858272-7A54070003 is a crystal component from the 7A series.

  • Series: 7A
  • Frequency: 54 MHz
  • Package: Tape and Reel
  • Standard Package Quantity: 1000 pieces
  • ESR (Equivalent Series Resistance): 50 Ohms
  • Frequency Stability: Not Specified
  • Frequency Tolerance: Not Specified
  • Load Capacitance: 19pF
  • Operating Mode: Fundamental
  • Mounting Type: Surface Mount
  • Status: Obsolete
