Same model may have multiple batches, images only for reference.

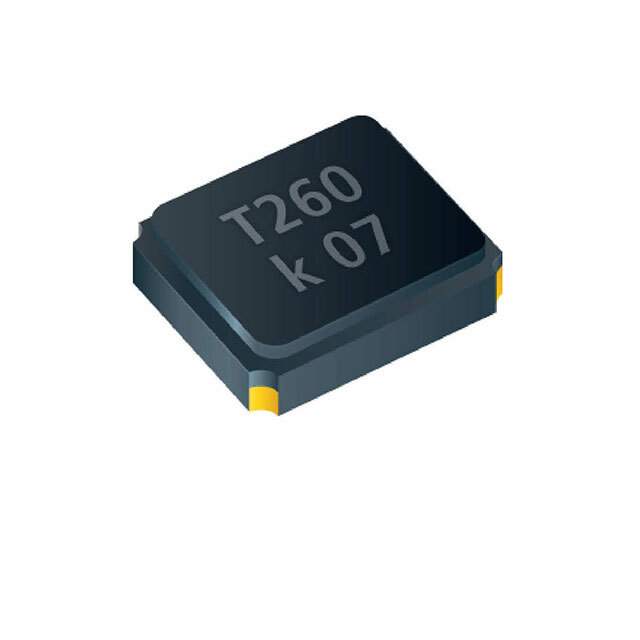

7V-14.31818MAAE-T Real Image
Same model may have multiple batches, images only for reference.

7V-14.31818MAAE-T

Part No 7V-14.31818MAAE-T
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 14.31818MHZ 12PF SMD / 14.31818 MHz ±30ppm Crystal 12pF 60 Ohms 4-SMD, No Lead
Datasheet
7V-14.31818MAAE-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr TXC CORPORATION
Series 7V
Package Tape & Reel
Type MHz Crystal
Frequency 14.31818 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 887-1460-1,3003-7V-14.31818MAAE-T,7V1431818MAAET,887-1460-6,887-1460-2
Standard Package 3,000
Win Source Part Number 1034759-7V-14.31818MAAE-T
Ultra Librarian 3D Model Ultra Librarian 7V-14.31818MAAE-T CAD Model

Description

The 7V series MHz crystal is a high-quality crystal that is designed to provide excellent frequency stability and accuracy.

  • Application: communication equipment and digital clocks
  • Frequency: 14.31818 MHz
  • ESR: 60 Ohms
  • Temperature Range: -20°C to 70°C
