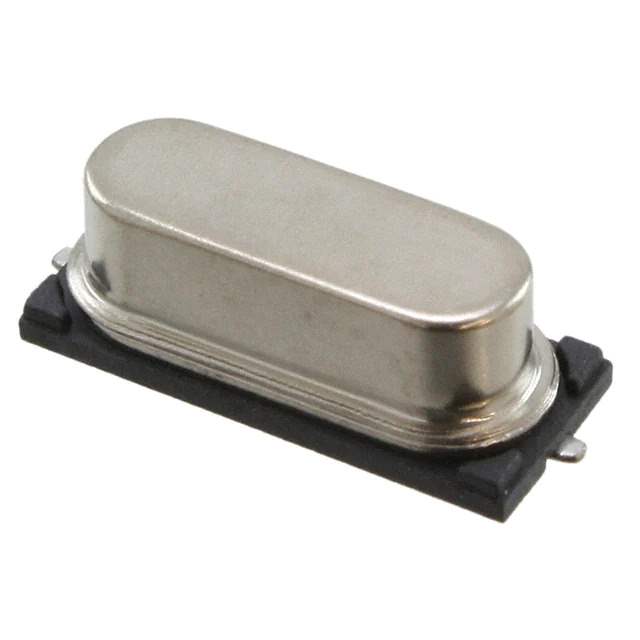

AT04070007 Real Image
Same model may have multiple batches, images only for reference.

AT04070007

Part No AT04070007
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 4.0000MHZ 12PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series AT
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 4 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±25ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 150 Ohms
Temperature Range - Operating -40°C ~ 105°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case HC-49/US
Size / Dimension 0.492" L x 0.189" W (12.50mm x 4.80mm)
Height - Seated (Max) 0.161" (4.10mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0030
Win Source Part Number 850311-AT04070007
Ultra Librarian 3D Model Ultra Librarian AT04070007 CAD Model

Description

The 850311-AT04070007 is a 4 MHz crystal from the AT series.

  • Package: Tape & reel
  • Standard Package: 1,000 pieces
  • Size: 0.492" L x 0.189" W (12.50mm x 4.80mm)
  • Height (Seated): 0.161" (4.10mm)
  • AEC-Q200: Yes
  • Equivalent Series Resistance (ESR): 150 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±25ppm
  • Load Capacitance: 12pF
  • Mounting Type: Surface Mount
  • Package/Case: HC-49/US
  • Operating Temperature: -40°C to 105°C
  • Manufacturer: TXC Corporation
  • Product Status: Active
