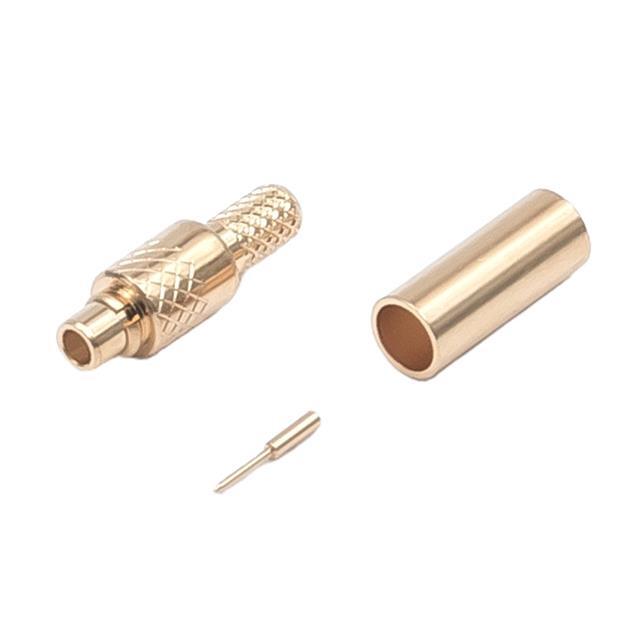

Same model may have multiple batches, images only for reference.
MMCX-P-316 TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MMCX-P-316

Part No MMCX-P-316
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Assemblies
Description MMCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Datasheet
MMCX-P-316 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Connector Style MMCX
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Crimp
Impedance 50 Ohms
Mounting Type Free Hanging (In-Line)
Cable Group RG-316
Fastening Type Snap-On
Frequency - Max 6GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Brass
Ultra Librarian 3D Model Ultra Librarian MMCX-P-316 CAD Model
