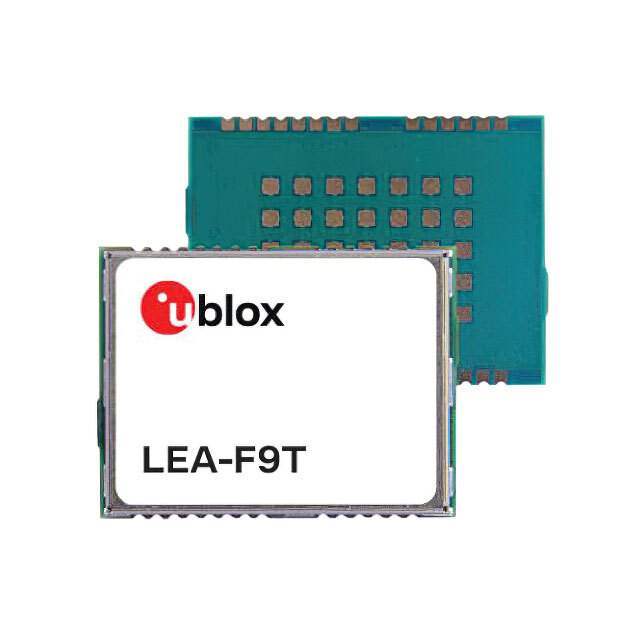

LEA-F9T-20B u-blox
Same model may have multiple batches, images only for reference.

LEA-F9T-20B

Part No LEA-F9T-20B
Manufacturer U-blox
Catalog RF Receivers
Description L1/L2/E5B, L1/L5/E5A GNSS TIMING
Datasheet
LEA-F9T-20B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306910-LEA-F9T-20B
Category RF and Wireless RF Receivers
Manufacturer u-blox
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Frequency 1.176GHz, 1.207GHz, 1.227GHz, 1.561GHz, 1.575GHz, 1.602GHz
Sensitivity -167dBm
Data Rate (Max) -12Mbps
Modulation or Protocol BeiDou, Galileo, GLONASS, GNSS, GPS
Applications GNSS Receiver
Data Interface I2C, SPI, UART, USB
Ultra Librarian 3D Model Ultra Librarian LEA-F9T-20B CAD Model

Description

RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS 1.176GHz, 1.207GHz, 1.227GHz, 1.561GHz, 1.575GHz, 1.602GHz -167dBm 12Mbps Not Included 28-SMD
