Same model may have multiple batches, images only for reference.

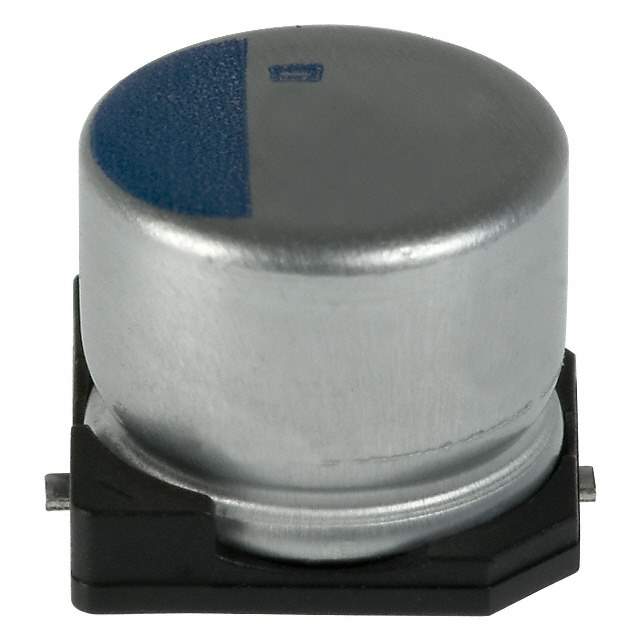

APXA2R5ARA681MHC0G Real Image
Same model may have multiple batches, images only for reference.

APXA2R5ARA681MHC0G

Part No APXA2R5ARA681MHC0G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description PXANPCAPTM- Series
Datasheet
APXA2R5ARA681MHC0G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer United Chemi-Con
Series NPCAP-PXA
Packaging Reel - TR
Type Polymer
Capacitance 680μF
Tolerance ±20%
Voltage Rating 2.5V
ESR (Equivalent Series Resistance) 12 mOhm
Lifetime @ Temp. 15000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Ripple Current - High Frequency 4.77A @ 100kHz
Size 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.472" (12.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 1147002-APXA2R5ARA681MHC0G
Manufacturer Homepage www.chemi-con.com
Popularity Medium
Supply and Demand Status Limited
Family Name PXA
Introduction Date September 07, 2008
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian APXA2R5ARA681MHC0G CAD Model

Description

The United Chemi-Con NPCAP-PXA series polymer capacitor with a capacitance of 680μF and a voltage rating of 2.5V is perfect for general-purpose applications.

  • Capacitance: 680μF
  • Voltage Rating: 2.5V
  • Package: Radial, can - SMD
  • Height: 0.472" (12.00mm)
  • Tolerance: ±20%
  • ESR: 12 mOhm
  • Lifetime: 15000 Hrs @ 105°C
  • Ripple Current: 4.77A @ 100kHz
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Operating Temperature Range: -55°C to 105°C
