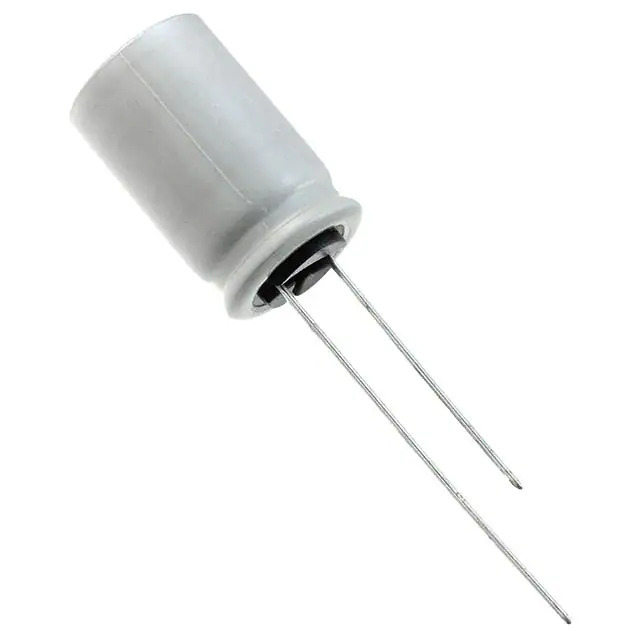

EGPD250ELL202MK20H United Chemi-Con
Same model may have multiple batches, images only for reference.

EGPD250ELL202MK20H

Part No EGPD250ELL202MK20H
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 2000UF 20% 25V RADIAL / 2000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 42mOhm @ 100kHz 3000 Hrs @ 135°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series GPD
Package Bulk
Product Status Active
Capacitance 2000 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 42mOhm @ 100kHz
Lifetime @ Temp. 3000 Hrs @ 135°C
Temperature Range - Operating -40°C ~ 135°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 1.656 A @ 120 Hz
Ripple Current @ High Frequency 2.76 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1354009-EGPD250ELL202MK20H
Ultra Librarian 3D Model Ultra Librarian EGPD250ELL202MK20H CAD Model

Description

The 1354009-EGPD250ELL202MK20H is a bulk package radial aluminum electrolytic capacitor from United Chemi-Con.

  • Series: GPD
  • Capacitance: 2000 μF
  • Voltage Rating: 25 V
  • Operating Temperature: -40°C to 135°C
  • Application: Automotive
  • Tolerance: ±20%
  • Lifetime: 3000 hours @ 135°C
  • Ripple Current (Low Frequency): 1.656 A @ 120 Hz
  • Ripple Current (High Frequency): 2.76 A @ 100 kHz
  • Lead Spacing: 0.197" (5.00mm)
  • Size/Dimension: 0.492" (12.50mm) diameter and 0.846" (21.50mm) in height
  • Standard: AEC-Q200
