Same model may have multiple batches, images only for reference.

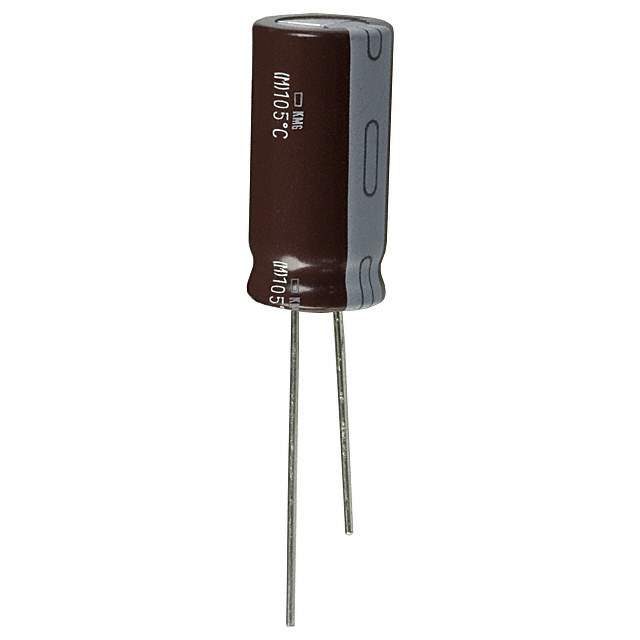

EKMG250ELL332ML25S Real Image
Same model may have multiple batches, images only for reference.

EKMG250ELL332ML25S

Part No EKMG250ELL332ML25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 3300UF 20% 25V RADIAL / 3300 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KMG
Package Bulk
Capacitance 3300 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.4 A @ 120 Hz
Ripple Current @ High Frequency 1.512 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.043" (26.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-1313
Standard Package 500
Win Source Part Number 1192372-EKMG250ELL332ML25S
Ultra Librarian 3D Model Ultra Librarian EKMG250ELL332ML25S CAD Model

Description

The KMG series aluminum electrolytic capacitor from United Chemi-Con is designed for general-purpose applications. United Chemi-Con

  • Series: KMG
  • Application: General-Purpose
  • Capacitance: 3300 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 1.4 A @ Low Frequency
  • Ripple Current (High Frequency): 1.512 A @ High Frequency
  • Lifetime: 1,000 hours @ 105°C
  • Polarization: Polarized
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Lead Spacing: 0.295 inches (7.50 mm)
  • Diameter: 0.630 inches (16.00 mm)
  • Surface Mount Land Size: N/A
