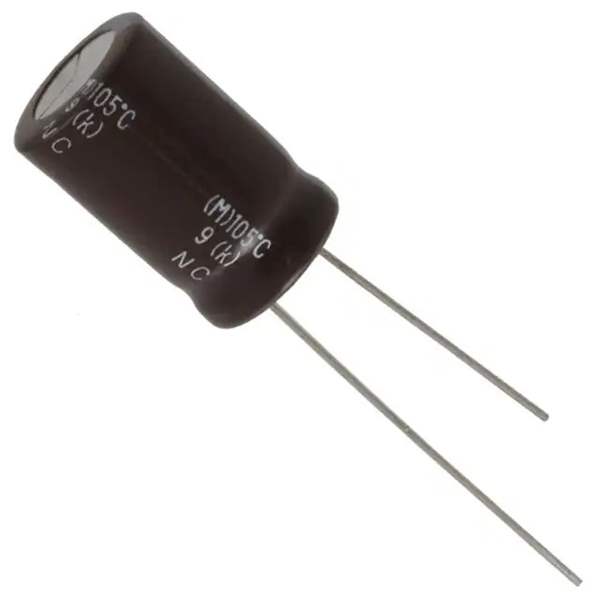

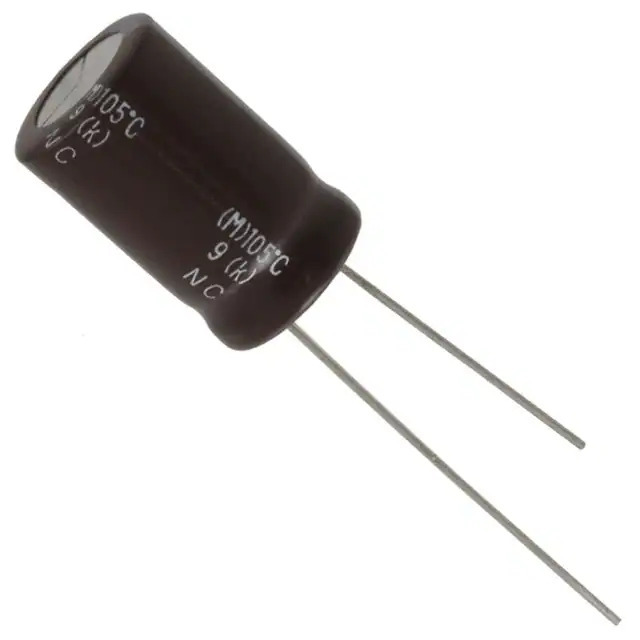

EKMG451ELL100MK20S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKMG451ELL100MK20S

Part No EKMG451ELL100MK20S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 450V RADIAL / 10 µF 450 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KMG
Package Bulk
Product Status Active
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 65 mA @ 120 Hz
Ripple Current @ High Frequency 117 mA @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357690-EKMG451ELL100MK20S
Ultra Librarian 3D Model Ultra Librarian EKMG451ELL100MK20S CAD Model

Description

The KMG series aluminum electrolytic capacitor is a reliable component manufactured by United Chemi-Con.

  • Capacitance: 10 µF
  • Voltage Rating: 450 V
  • Tolerance: ±20%
  • Temperature Range: -25°C to 105°C
  • Package: Radial, can-style
  • Mounting: Through-hole
  • Lead Spacing: 0.197" (5.00mm)
  • Size: 0.492" (12.50mm) in diameter
  • Seated Height: 0.846" (21.50mm)
  • Lifetime: 2000 hours @ 105°C
  • Ripple Current (Low Frequency): 65 mA @ 120 Hz
  • Ripple Current (High Frequency): 117 mA @ 100 kHz
  • Applications: General-purpose applications
  • Product Status: Active
