Same model may have multiple batches, images only for reference.

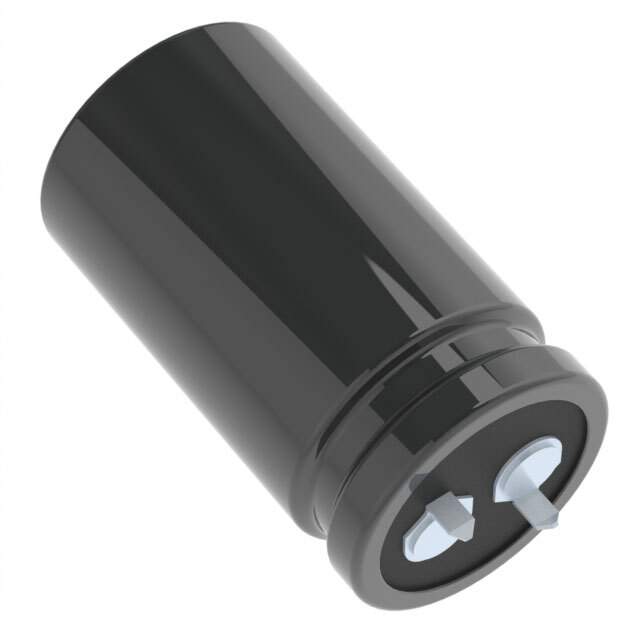

EKMH100VSN333MQ45T Real Image
Same model may have multiple batches, images only for reference.

EKMH100VSN333MQ45T

Part No EKMH100VSN333MQ45T
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description Cap Aluminum Lytic 33000uF 10V 20% (25.4 X 45mm) Snap-In 10mm 0.025 Ohm 3300mA 2000h 105°C / CAP ALUM 33000UF 20% 10V SNAP
Datasheet
EKMH100VSN333MQ45T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer United Chemi-Con
Series KMH
Packaging Bulk
Capacitance 33000μF
Tolerance ±20%
Voltage Rating DC 10V
ESR (Equivalent Series Resistance) 25 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -40°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 3.3A @ 120Hz
Ripple Current - High Frequency 3.564A @ 100kHz
Lead Spacing 0.394" (10.00mm)
Dimension 1.000" Dia (25.40mm)
Height - Seated (Maximum) 1.772" (45.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In
Win Source Part Number 785100-EKMH100VSN333MQ45T
Popularity Medium
Supply and Demand Status Limited
Family Name KMH
Introduction Date May 06, 2007
ECCN EAR99
Country of Origin China, Japan, United States of America
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian EKMH100VSN333MQ45T CAD Model

Description

The United Chemi-Con 723442 capacitor is a snap-in type capacitor from United Chemi-Con in the KMH series.

  • Capacitance: 33000μF
  • Voltage Rating: 10V DC
  • Tolerance: ±20%
  • ESR: 25 mOhm @ 120Hz
  • Operating Temperature Range: -40°C to 105°C
  • Lead Spacing: 0.394" (10.00mm)
  • Lifetime: 2000 Hrs @ 105°C
  • Applications: General
  • Package: Radial, Can - Snap-In
  • Supply and Demand: Limited
