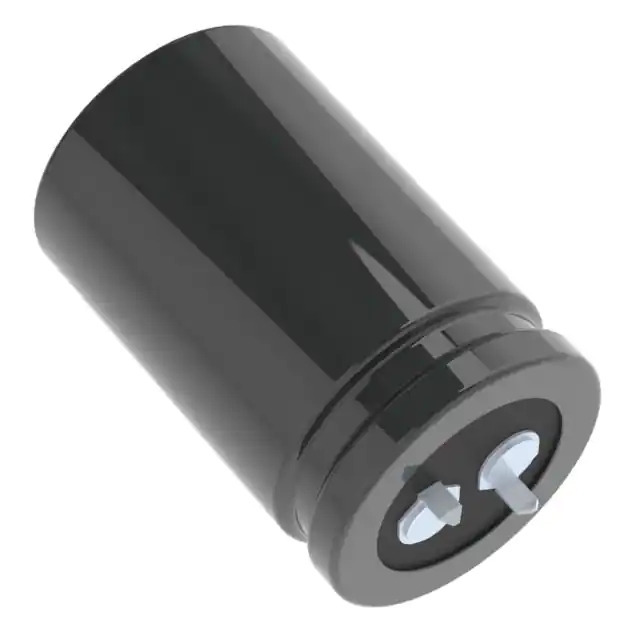

EKMR401VSN561MR45S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKMR401VSN561MR45S

Part No EKMR401VSN561MR45S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 560UF 20% 400V SNAP / 560 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KMR
Package Bulk
Product Status Active
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.91 A @ 120 Hz
Ripple Current @ High Frequency 2.7313 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 1.870" (47.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360754-EKMR401VSN561MR45S
Ultra Librarian 3D Model Ultra Librarian EKMR401VSN561MR45S CAD Model

Description

The 1360754-EKMR401VSN561MR45S is a high-quality aluminum electrolytic capacitor manufactured by United Chemi-Con.

  • Series: KMR
  • Application: General Purpose
  • Capacitance: 560 µF
  • Voltage Rating: 400 V
  • Temperature Range: -25°C to 105°C
  • Package: Snap-in, Radial Can
  • Mounting Type: Through-Hole
  • Lifetime: 2000 hours @ 105°C
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 1.91 A
  • Ripple Current (High Frequency): 2.7313 A
