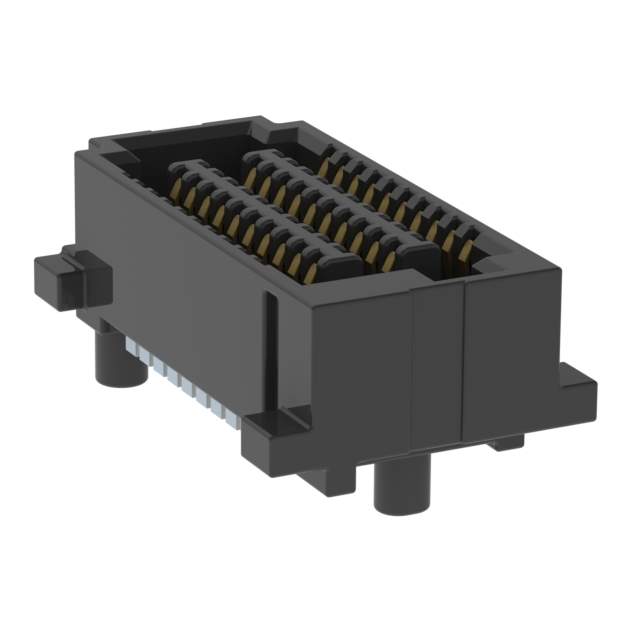

SEAF8-10-05.0-S-06-2 Real Image
Same model may have multiple batches, images only for reference.

SEAF8-10-05.0-S-06-2

Part No SEAF8-10-05.0-S-06-2
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF8-10-05.0-S-06-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR)
Product Status Obsolete
Connector Type High Density Array, Female
Number of Positions 60
Pitch 0.031" (0.80mm)
Number of Rows 6
Mounting SMD (SMT)
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 7mm, 10mm
Height Above Board 0.180" (4.57mm)
Base Product Number SEAF8-10
Standard Package 125
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293554-SEAF8-10-05.0-S-06-2
Ultra Librarian 3D Model Ultra Librarian SEAF8-10-05.0-S-06-2 CAD Model

Description

The SEARAY™ SEAF high density array, female connector is a rectangular connector with edge type and mezzanine (board to board) design.

  • Positions: 60
  • Pitch: 0.031" (0.80mm)
  • Rows: 6
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Package: Tape & reel (TR)
  • Mated Stacking Heights: 7mm and 10mm
  • Height Above Board: 0.180" (4.57mm)
  • Mounting Type: SMD (SMT) technology
  • Manufacturer: Samtec Inc.
  • Standard Package: 125
