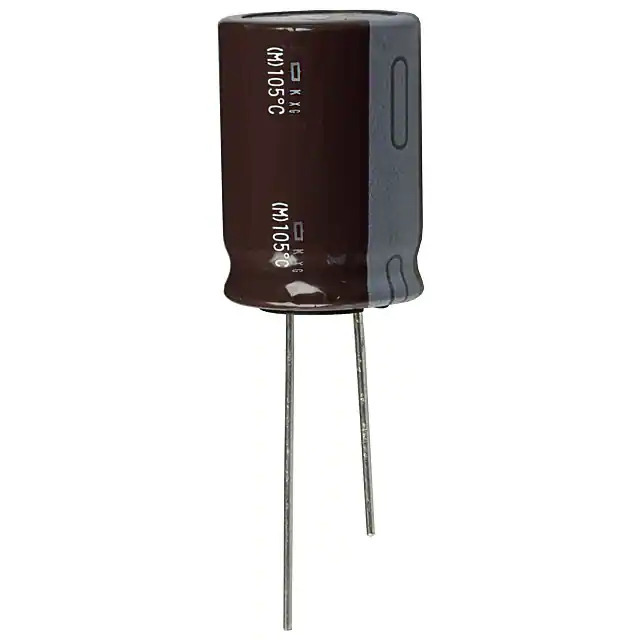

EKXG401ELL680MM25S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKXG401ELL680MM25S

Part No EKXG401ELL680MM25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 68UF 20% 400V RADIAL / 68 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KXG
Package Bulk
Product Status Active
Capacitance 68 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 585 mA @ 120 Hz
Ripple Current @ High Frequency 1.4625 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 0.984" (25.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358288-EKXG401ELL680MM25S
Ultra Librarian 3D Model Ultra Librarian EKXG401ELL680MM25S CAD Model

Description

The 1358288-EKXG401ELL680MM25S is a bulk package radial aluminum electrolytic capacitor manufactured by United Chemi-Con.

  • Series: KXG
  • Capacitance: 68 μF
  • Voltage Rating: 400 V
  • Operating Temperature: -40°C to 105°C
  • Tolerance: ±20%
  • Lifetime: 10000 hours @ 105°C
  • Ripple Current (Low Frequency): 585 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.4625 A @ 100 kHz
  • Lead Spacing: 0.295" (7.50mm)
  • Size/Dimension: 0.709" (18.00mm) Dia, 0.984" (25.00mm) Height
  • Application: General Purpose
  • Package: Bulk
