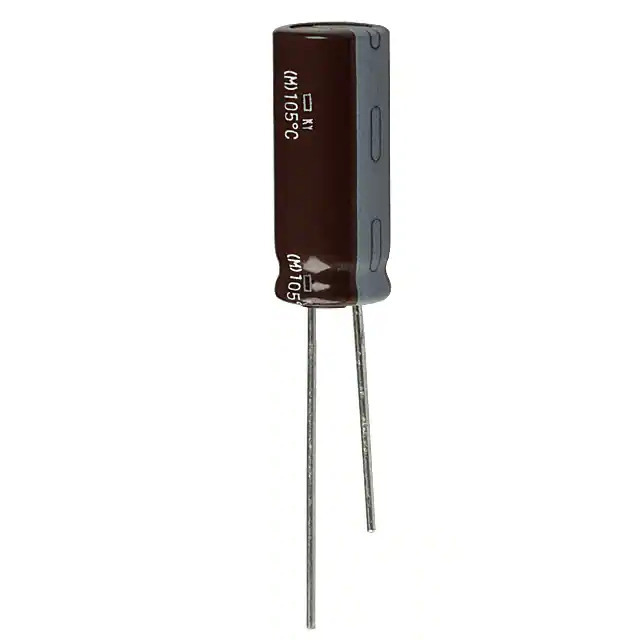

EKY-500ETC220ME11D United Chemi-Con
Same model may have multiple batches, images only for reference.

EKY-500ETC220ME11D

Part No EKY-500ETC220ME11D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 50V RADIAL / 22 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KY
Package Tape & Box (TB)
Product Status Obsolete
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 72 mA @ 120 Hz
Ripple Current @ High Frequency 180 mA @ 100 kHz
Impedance 700 mOhms
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357726-EKY-500ETC220ME11D
Ultra Librarian 3D Model Ultra Librarian EKY-500ETC220ME11D CAD Model

Description

The 1357726-EKY-500ETC220ME11D is an aluminum electrolytic capacitor from United Chemi-Con's KY series from United Chemi-Con.

  • Capacitance: 22 µF
  • Voltage Rating: 50 V
  • Temperature Range: -40°C to 105°C
  • Lifetime: 5,000 hours @ 105°C
  • Package: Radial, Can
  • Mounting: Through Hole
  • Ripple Current (120 Hz): 72 mA
  • Ripple Current (100 kHz): 180 mA
  • Lead Spacing: 0.079" (2.00mm)
  • Size/Dimension: 0.197" diameter (5.00mm)
  • Maximum Seated Height: 0.492" (12.50mm)
  • Status: Obsolete
  • REACH: Unaffected
