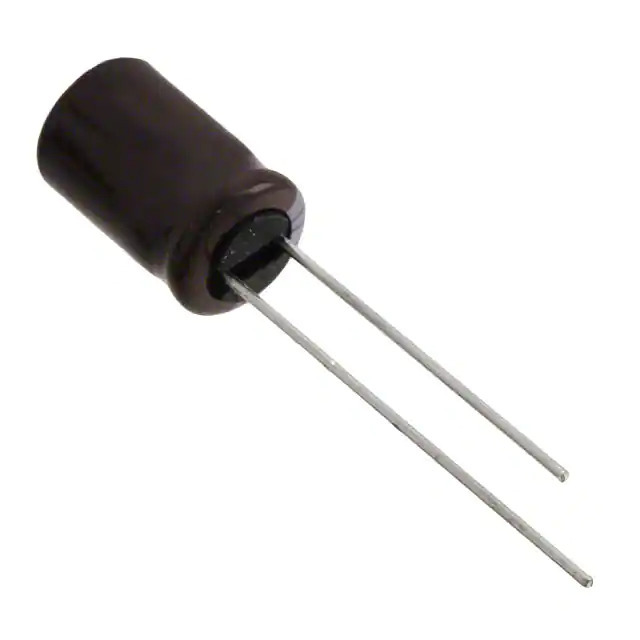

EKZE500ELL101MHB5D United Chemi-Con
Same model may have multiple batches, images only for reference.

EKZE500ELL101MHB5D

Part No EKZE500ELL101MHB5D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V RADIAL / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KZE
Package Bulk
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 289.6 mA @ 120 Hz
Ripple Current @ High Frequency 724 mA @ 100 kHz
Impedance 74 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358244-EKZE500ELL101MHB5D
Ultra Librarian 3D Model Ultra Librarian EKZE500ELL101MHB5D CAD Model

Description

The 1358244-EKZE500ELL101MHB5D is a high-quality aluminum electrolytic capacitor manufactured by United Chemi-Con.

  • Series: KZE
  • Capacitance: 100 µF
  • Voltage - Rated: 50 V
  • Tolerance: ±20%
  • Lifetime @ Temp.: 3000 Hrs @ 105°C
  • Operating Temperature: -40°C ~ 105°C
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Lead Spacing: 0.138" (3.50mm)
  • Size / Dimension: 0.315" Dia (8.00mm)
  • Ripple Current @ Low Frequency: 289.6 mA @ 120 Hz
  • Ripple Current @ High Frequency: 724 mA @ 100 kHz
  • Impedance: 74 mOhms
